Process Specification
1.Board Type: Single board, insulation board, double sided board3.Copper Thickness: 1OZ‑6OZ; Outside copper thickness:18‑105μm; Core copper thickness:18‑35μm
4.Min.Trace Width & Line Spacing: 0.15mm
5.Max Processing Size: 120cm*60cm
6.Surface Treatment: OSP, HASL, Immersion Gold, Immersion Tin (lead free), Immersion Silver
7.OSP Thickness: 0.20‑0.40um
Specific process information
Household Indoor Lighting
Household Indoor Lighting Applied for LED bulbs, tube lights, panel lights, downlights,
ceiling lights and cabinet lights.Aluminum PCBs dissipate heat for medium‑power LED beads
to ensure stable home lighting performance.
Commercial & Outdoor Lighting
Commercial & Outdoor Lighting Suitable for LED street lights, tunnel lights, flood lights,
wall washers, high‑bay lights and plant grow lights. High‑thermal‑conductivity
aluminum PCBs handle heavy heat output of high‑power LEDs under harsh outdoor conditions.
Automotive LED Lighting
Automotive LED Interior Light Square & rectangle smd led pcb board for car interior lamp, reading lamp, license plate lamp. High thermal‑conductivity aluminum base guarantees long‑term stable operation for vehicle SMD LED modules.
Security & Special‑purpose LED Module
Security & Special‑purpose LED Module Circular and irregular‑shape led pcb for CCTV infrared fill light and industrial auxiliary lighting. Bare PCB or finished PCBA solution are optional.

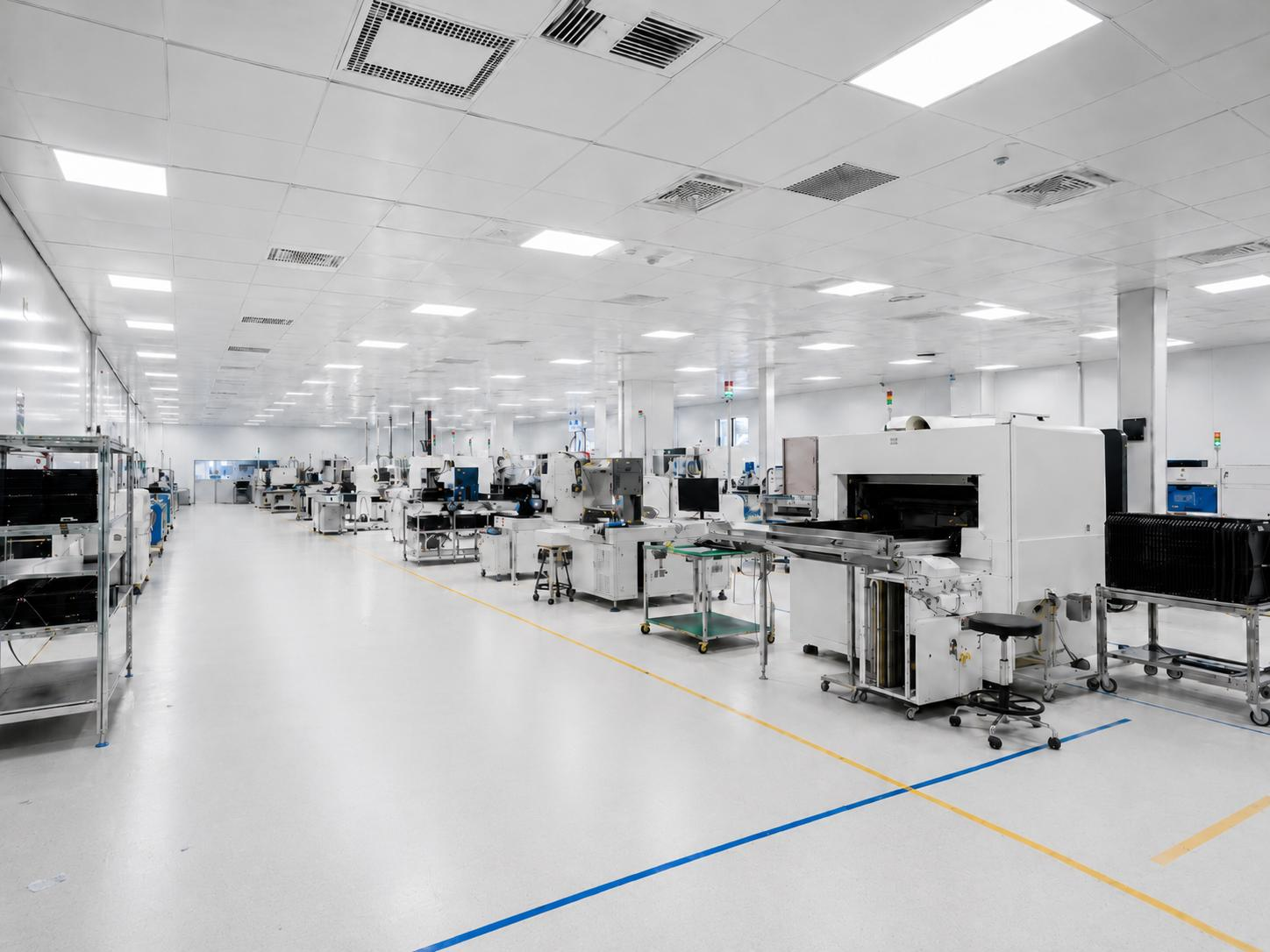

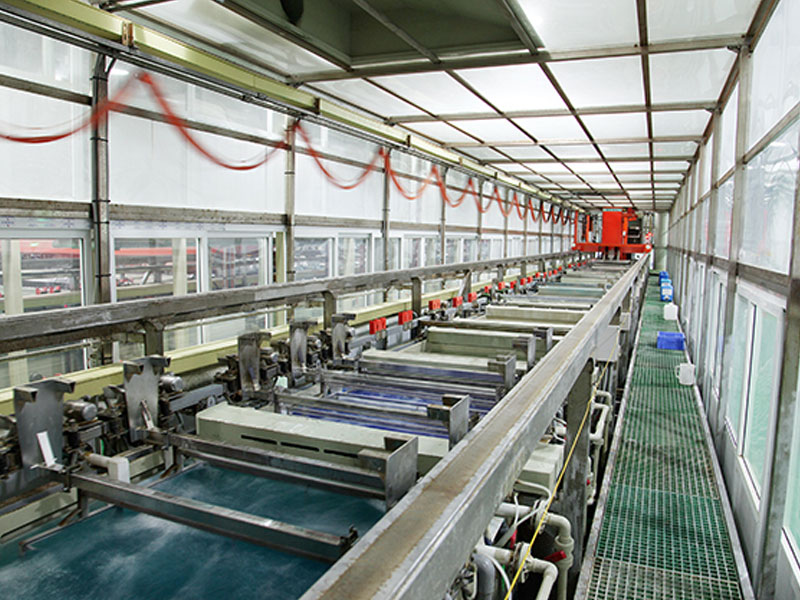

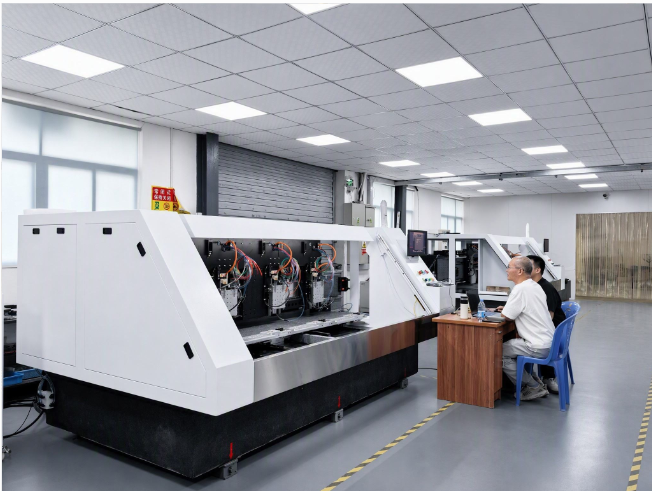

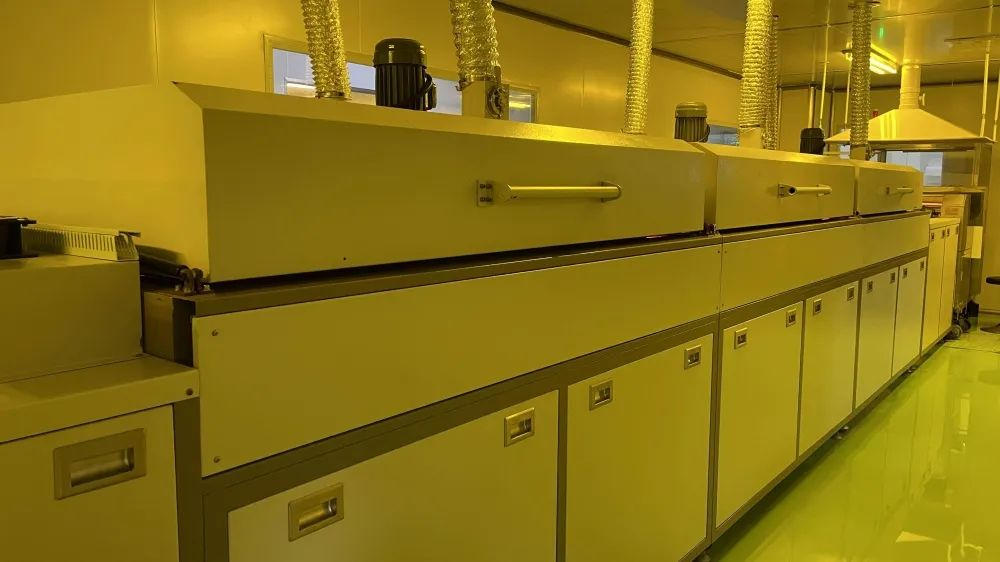

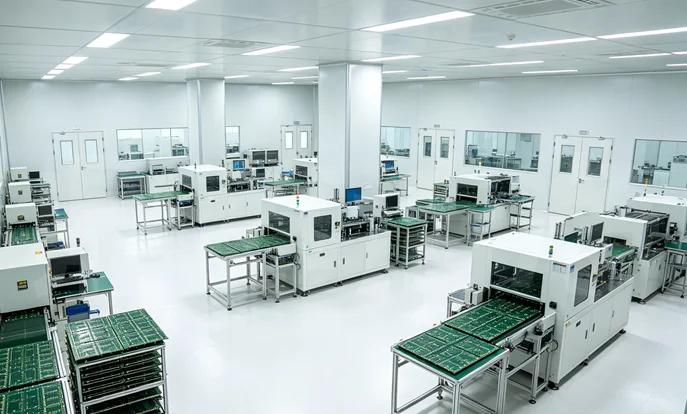

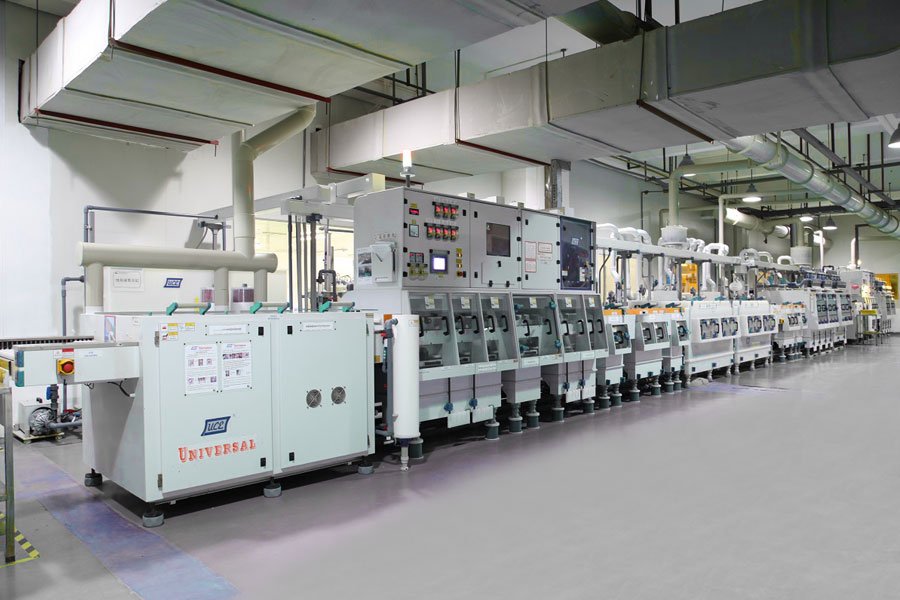

We maintain a complete manufacturing workshop for aluminum PCBs.
Every procedure including raw material incoming check, cutting, imaging, etching, solder mask printing,
AOI inspection, electrical test, final QA and packaging is strictly monitored.
Stable quality is guaranteed for LED light circuit boards.
Both custom samples and mass‑volume orders are welcome.
Contact us for any help regarding your PCB
Website: www.xdpcba.com
Email: bluesky@xdpcba.com
Sales10@xdpcba.com
Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours
One‑stop EMS service for led panel pcb, led lamp pcb and smd led pcb. We provide PCB layout design, aluminum substrate PCB fabrication, SMD LED soldering, BOM component sourcing and finished lighting module testing. Support custom round, ring, special‑shape aluminum PCB for panel light, ceiling lamp and spot light. UL, ISO, RoHS compliant.
Quote Now
Custom‑designed aluminum pcb for led tube light. Bare MCPCB and full PCBA assembly available with 2835 SMD LEDs, MOSFET and passive components. Narrow long‑strip metal core pcb for T8, T10 replacement tube lamps, excellent thermal dissipation for indoor commercial lighting.
Quote Now
Custom round LED aluminum MCPCB board. High thermal conductivity metal core printed circuit board. Multiple pad layouts for COB, SMD LED and RGB LED. Support bare PCB or full PCBA assembly. Custom diameter, thermal resistance and circuit design for downlight, panel light and spot lighting.
Quote Now
Custom‑made round pcb aluminum board for LED lighting. Multiple diameter sizes available. Bare metal‑core pcb or finished PCBA for SMD / high‑power LED, widely used for downlight, spot light, PAR bulb, flood light fixtures. Good thermal conductivity for high‑power LED modules.
