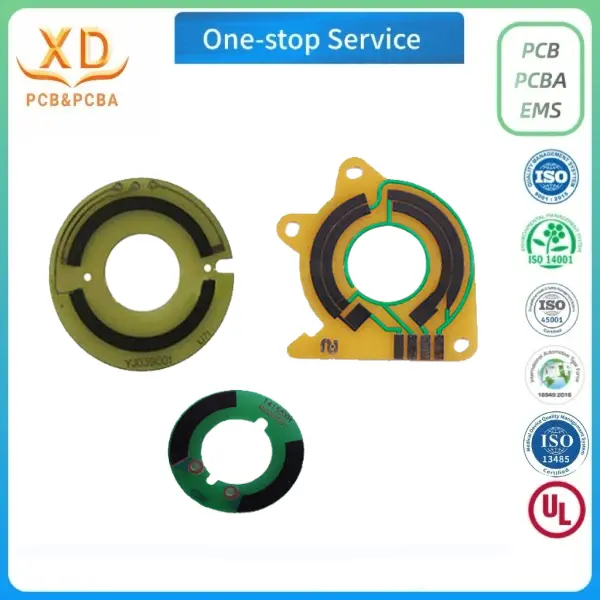

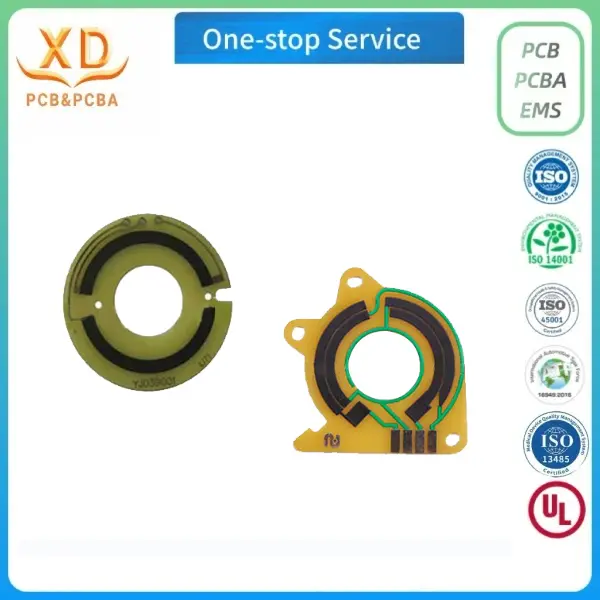

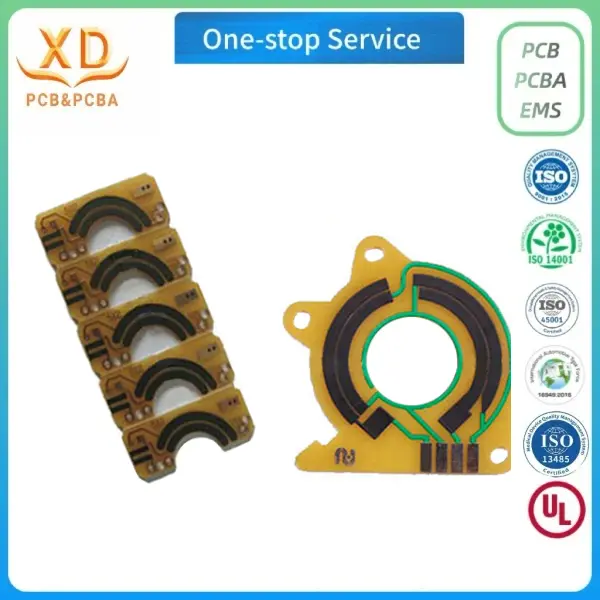

Custom Carbon Printing PCB Board | Carbon Oil Resistive Sensor PCB OEM
- Place of origin: China
- Material: Fr4
- Board thickness: 1.6mm
- Offer:
- Range of copper thickness: 1oz
Carbon PCB Process Specification
Carbon PCB Manufacturing & Technical Specifications

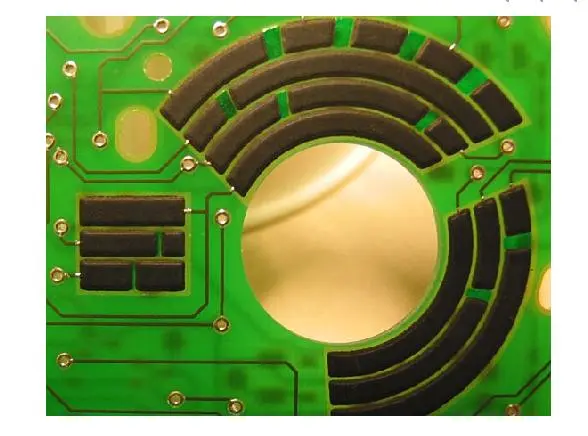

Process principle: Screen printing conductive carbon oil onto etched PCB substrate,
high-temperature curing to form resistive carbon tracks for contact position sensing.
- Game handle carbon PCB (PS2, XBOX etc.)
- Total resistance range: 1KΩ - 1MΩ
- Resistance tolerance: ±10%
- Heat resistance: 260℃±5℃, 5 sec, △TR ≤ ±50%
- Durability: ≥1 million cycles
- Automobile component carbon PCB (windscreen wiper, light, air-condition control)
- Resistance taper: 1KΩ -1MΩ
- Resistance tolerance: ±1%
- Linearity tolerance: ±1%
- TCR: ±800PPM within -40℃ ~ +85℃
- Durability: ≥1 million cycles
- Speed control electrical component carbon PCB
- Resistance taper: 1Ω -3MΩ
- Resistance tolerance: ±1%
- Linearity tolerance: ±1%
- Durability: ≥1 million cycles
Customization support: Custom shape, arc carbon track layout, resistance value
and tolerance to match your sensing requirements.

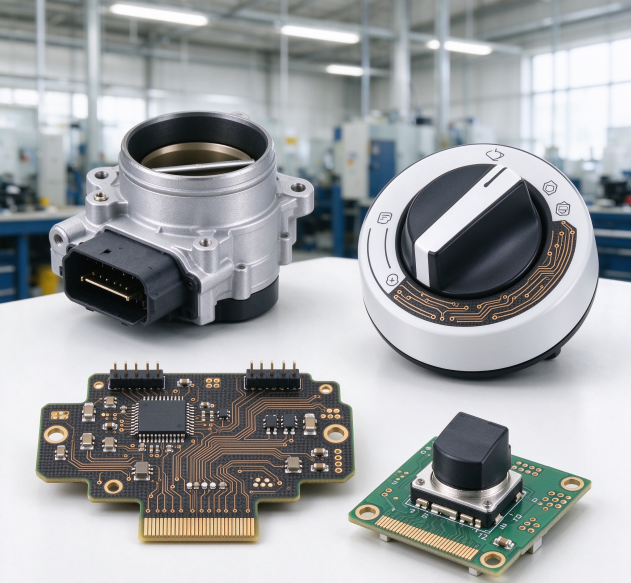

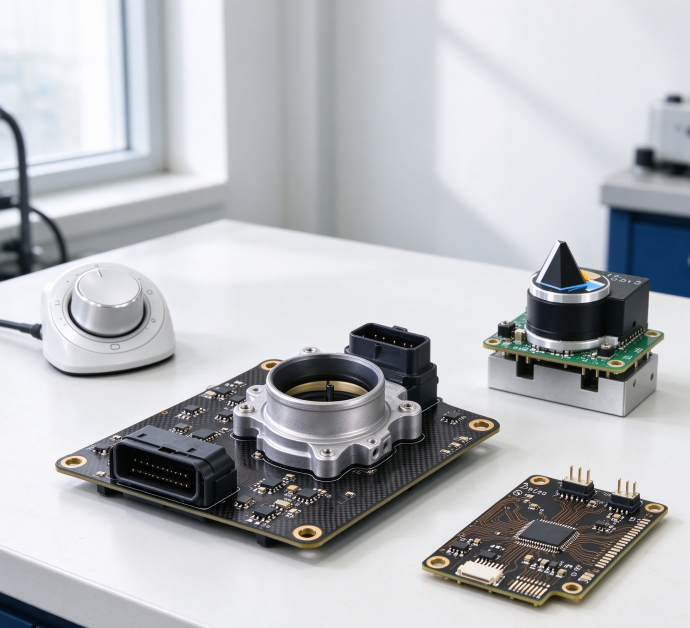

Carbon PCB Application scenarios
Carbon oil-printed PCB is a core contact resistive sensing component.
1. Game controllers: PS2, XBOX game controller joystick position detection

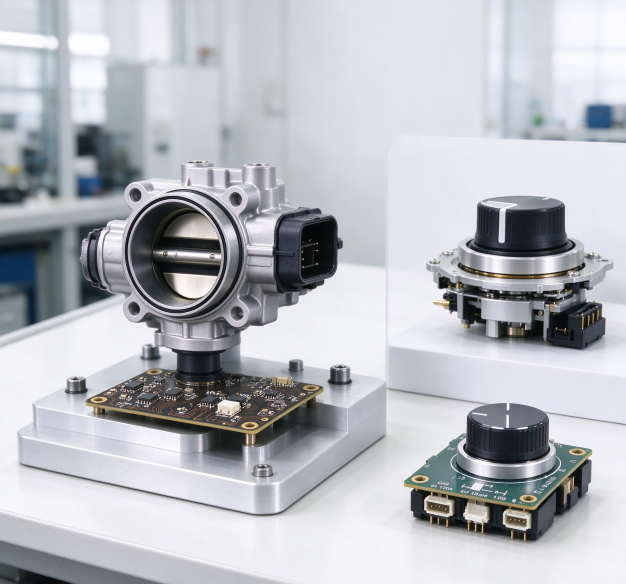

2. Automotive electronics: Windscreen wiper, car light, air conditioner rotary control sensors
3. Industrial electronics: Motor speed control modules, rotary potentiometers, angle position sensors
4. Home appliances: Fan, blender, oven rotary control knobs.
The arc carbon traces capture rotating movement and output an accurate resistance signal
for position & speed feedback.

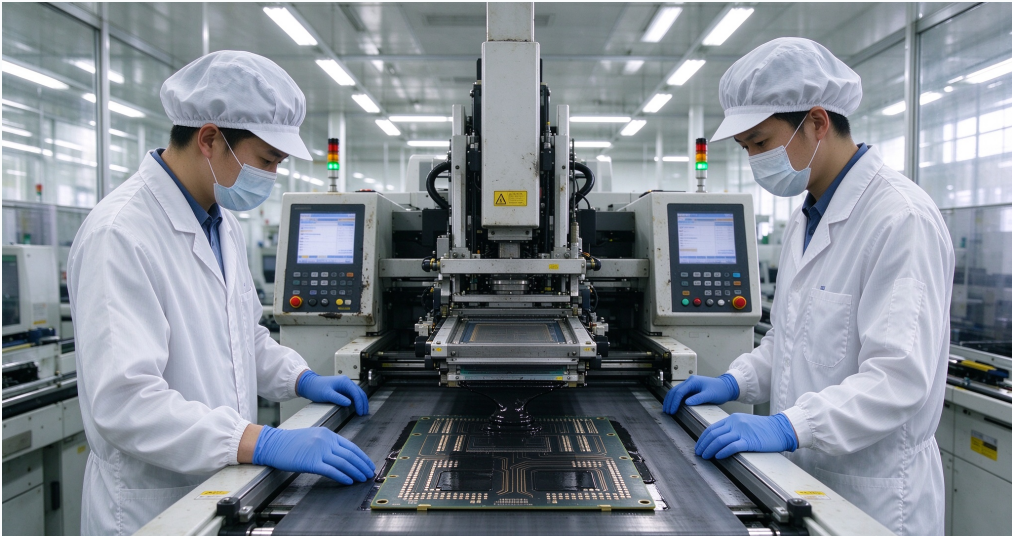

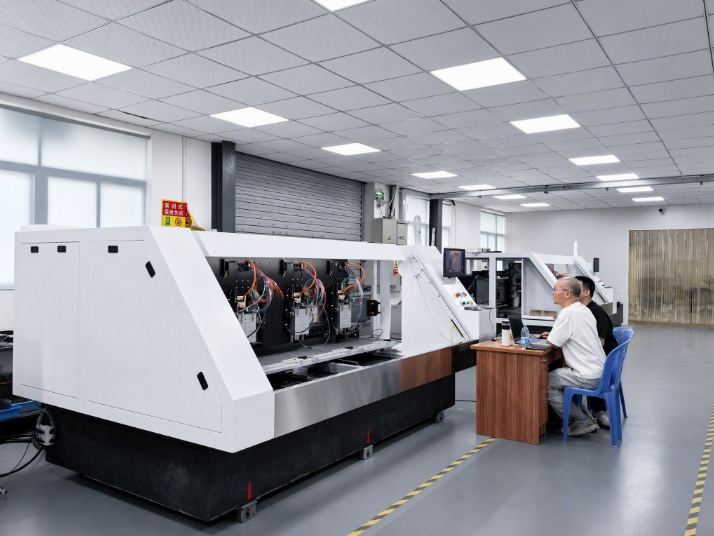

Carbon PCB Production Line
Carbon PCB full production workflow:
- FR4 raw material incoming quality inspection
- Drilling, routing and copper circuit etching of base PCB
- Surface cleaning & dust removal

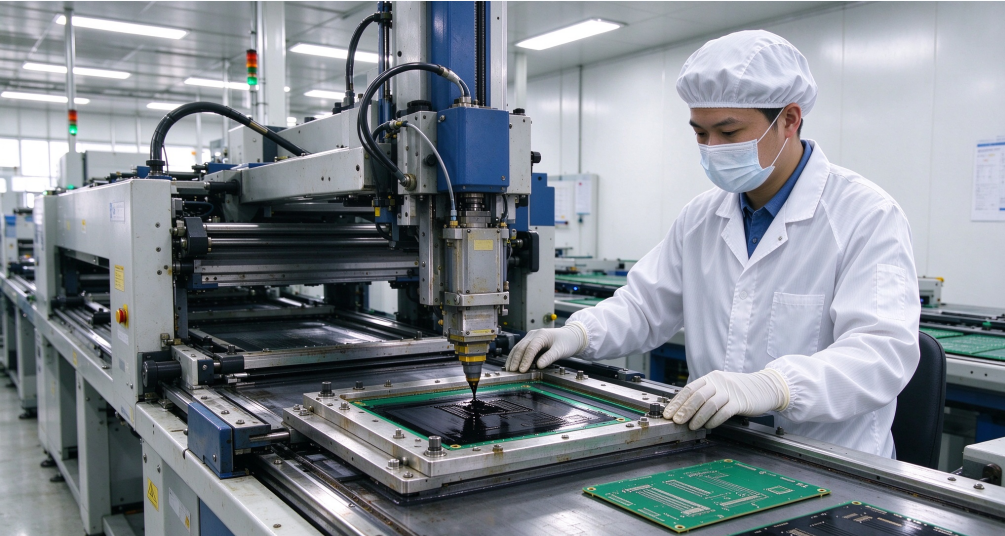

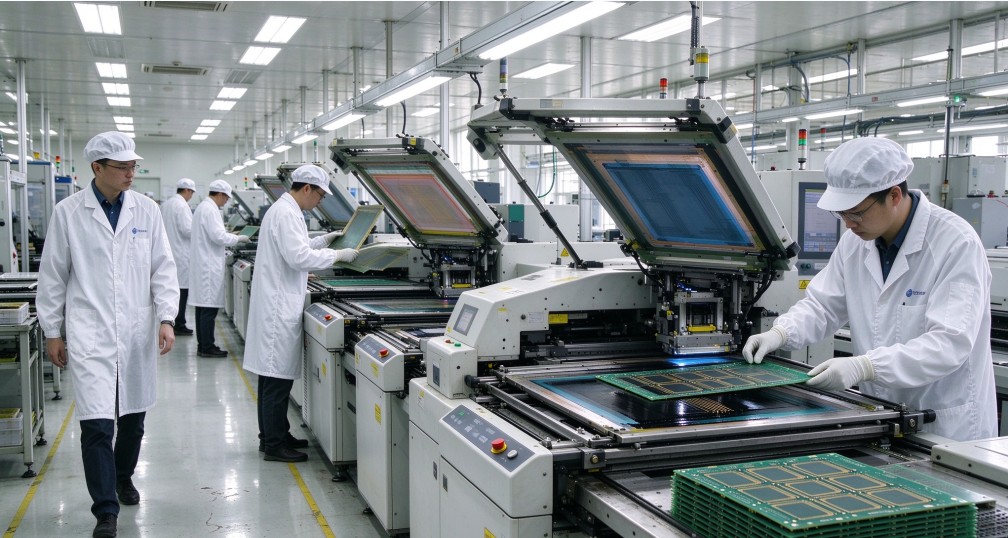

- Screen printing conductive carbon oil on designated circuit area
- High-temperature oven curing for carbon ink solidification
- Electrical testing: resistance value, linearity & heat resistance inspection
- Protective coating application
AOI visual inspection and final functional test We have full in-house production line,
strictly control carbon ink thickness and uniformity,
support custom carbon track pattern, prototype trial and mass volume manufacturing.
