Item | Specifictions | Item | Specifictions |
Regular Base Materials | Kapton,Polyimide(PI),Polyester(PET),PC | Outline Fabrication | Die cut,laser cut,CNC routing,V-scoring |
Layer Count | FPC:1-6 Layers;Rigid Flex:2-10 Layers | Min.Line Width/Spacing | 0.04mm/0.04mm |
Regular Base Material Thickness | FPC:12.5μm-50μm;Rigid:0.1mm-3.2mm | Blind or Buried Vias | Yes |
Copper Thickness | 1/3oz-6oz | Impedance Control | Yes |
Surface Finish | Electroplate Ni/Au(Flash gold/Soft gold/Hard gold),ENIG,Immersion Tin,plated sliver,immersion silver,OSP,HASL | Testing | Electrical Test |
Regular Thickness | Coverlay:27-50μm;Adhesive:12-25μm | Certification | ISO9001 / UL /ISO14001/IATF16949/ RoHS |
Standard FPC Production Flow:
Cutting→ Drilling→ PTH → Copper Plating → Pre-treatment → Dry Film Lamination → Exposure→ Developing→ Etching→
Stripping → Surface Treatment→ Coverlay Lamination → Stiffener Attachment → Baking→ Silkscreen → E-test →
Punching/Laser Cutting → FQC → Packaging
Contact us for any help regarding FPC:
Website: www.xdpcba.com
Email: sales@xdpcba.com; sales4@xdpcba.com
Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours
As a leading PCB manufacturer, we specialize in printer FPC, especially for thermal printers. We offer standard PI FPC manufacturing. Our PCBs are commonly used in receipt printers in retail environments. Our FPC uses RA copper as thin as 18 µm and can pass 100,000 dynamic bending cycles, enabling printers to achieve a longer service life while maintaining superior performance operation.
Quote Now
Engineered for advanced thermotherapy, this Polyimide (PI) Heating FPC provides precise, uniform heat distribution in an ultra-thin, flexible form factor. Its lightweight design is optimized for medical wearable devices, ensuring patient comfort while maintaining stable thermal performance. With excellent chemical resistance and mechanical durability, this circuit supports rapid heating cycles required for diagnostic sensors and therapeutic equipment, providing a reliable heating solution for cr
Quote Now

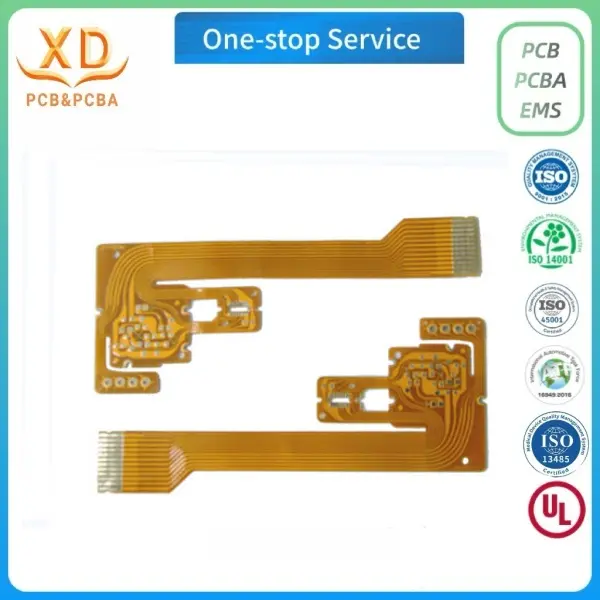

Specifically engineered for secure mobile payment systems and smart identity terminals, this 13.56MHz Rigid-Flex PCB delivers high-speed signal integrity in a compact, durable form factor. By integrating flexible circuitry with a stable rigid base, it eliminates the need for bulky connectors, significantly reducing device thickness. It is optimized for low-loss NFC transmission and high-frequency stability, ensuring reliable data exchange for financial transactions and secure access control in d
Quote Now
Engineered for the next generation of smart accessories, this NFC-enabled Flexible FPC is optimized for E-ink screen phone cases. Utilizing advanced enamel wire technology, it ensures high-efficiency energy harvesting and stable 13.56MHz data transmission without the need for a battery. Its ultra-thin, flexible design allows for seamless integration into slim mobile covers, providing a robust solution for real-time display updates and wireless interaction in the growing smart retail and consumer
