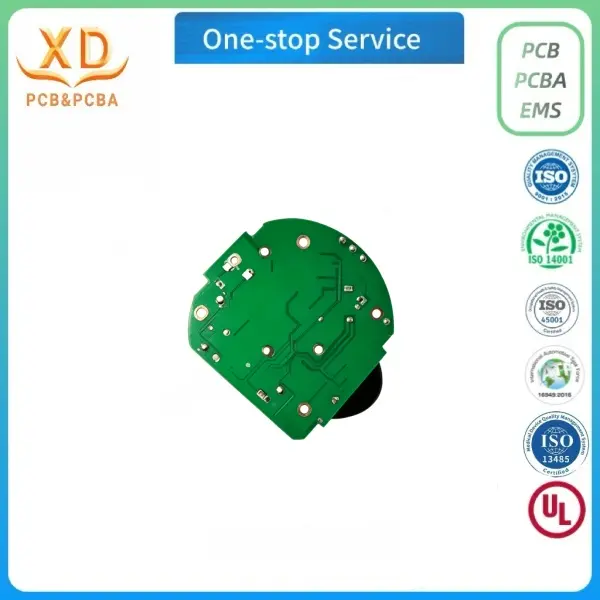

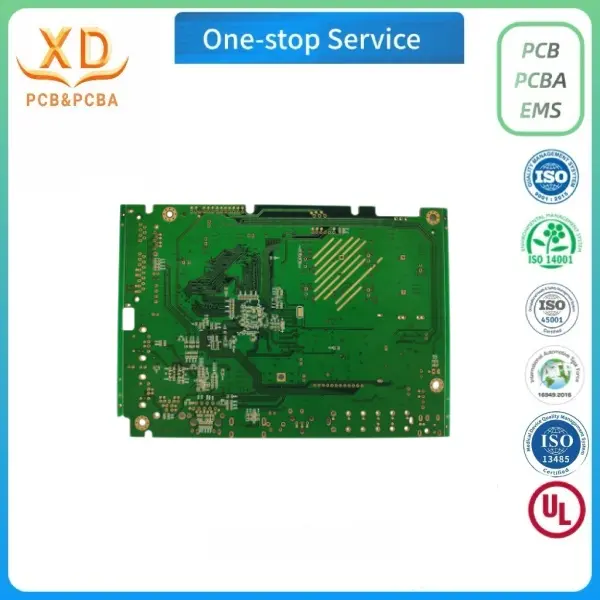

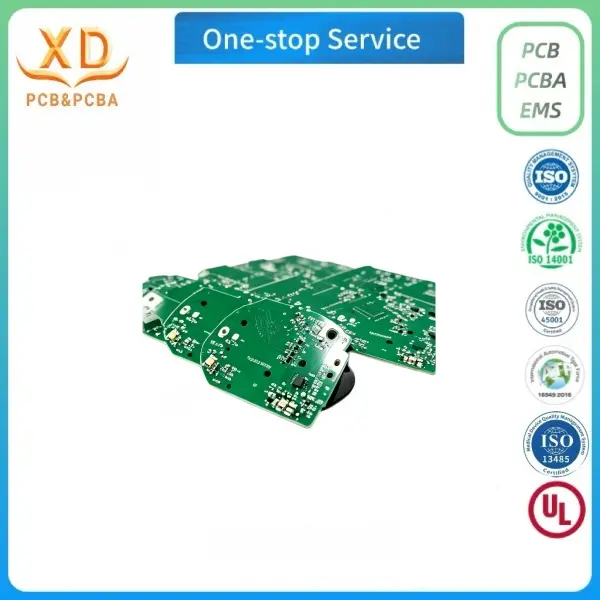

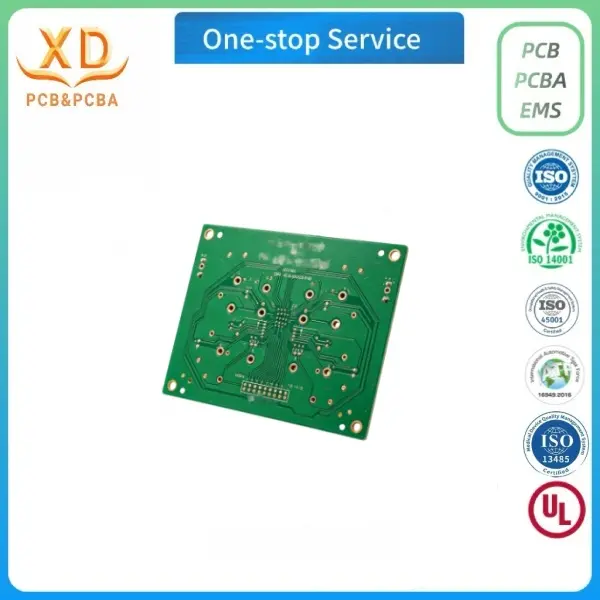

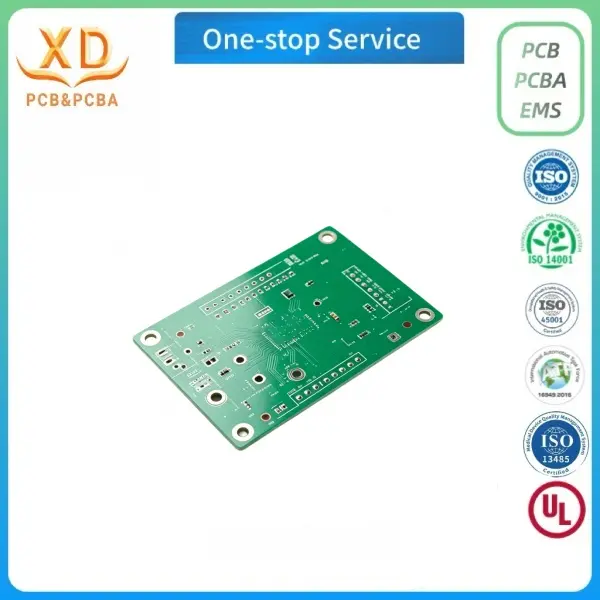

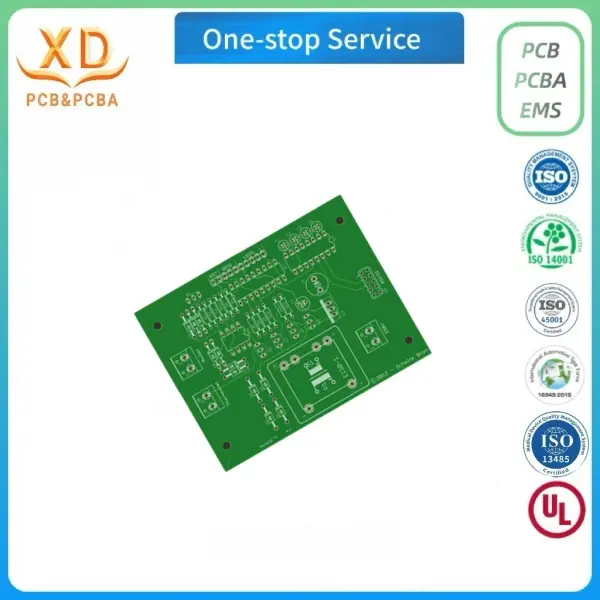

High-Performance Fire Alarm FR4 PCB circuit board pcb for Fire Detection System

Quote Now

1. Material Selection: High Tg flame retardant FR4

2. Layout Design: Optimize anti-interference routing

3. Drilling: Precision drilling for vias and mounting holes.

4. Plating & Etching: Metallize vias, etch to form accurate circuit traces.

5. Solder Mask & Silkscreen: Apply solder mask for protection; print component marks and warning labels.

6. Surface Finish: Lead free HASL

7. Electrical Test: Open-short & insulation test to ensure circuit integrity.

8. Final Inspection: Dimensional and appearance check for fire-safety compliance.

1. Commercial Buildings: Office buildings, shopping malls, hotels, for smoke & temperature fire detection and alarm

notification.

2. Residential Premises: Apartments, villas, residential complexes for household fire early warning systems.

3. Industrial Sites: Factories, warehouses, workshops, monitor fire risks for production and storage areas.

4. Public Facilities: Schools, hospitals, subway stations, airports, support mass public fire safety systems.

5. Transportation: Bus stations, ship cabins, provide onboard fire detection function.

6. Special-purpose Spaces: Data centers, power rooms, guard against fire hazards of electrical equipment.
