Custom Mini CNC FR-4 PCB for Ceiling Fan, Induction Cooker, and Radio Drilling Machines

Place of origin: Shenzhen China
Material: Fr4
Board thickness: 0.2mm-6mm
Offer: Leave your email to receive a discount coupon – we'll send it to you right away.
Range of copper thickness: 0.5oz-12oz

Quote Now

PCB Process

Base Material: FR4

Layer Count: 4-20 Layers

Board Thickness: 0.2mm-6mm

Copper Thickness: 0.5oz-12oz (18μm-420μm)

Surface Finish: HASL, ENIG(Immersion Gold), OSP

Solder Mask: Green, White, Red, Blue, Black

Silkscreen: White, Black, Yellow

Min. Trace Width/Space: 3mil/3mil (0.075 mm)

Min. Hole Size: 0.1mm (CNC Drilling) / 0.6mm (Punching)

Impedance Control: Available

Testing: 100% Electrical Test

Certifications: ISO9001, UL, ISO14001, IATF16949, RoHS

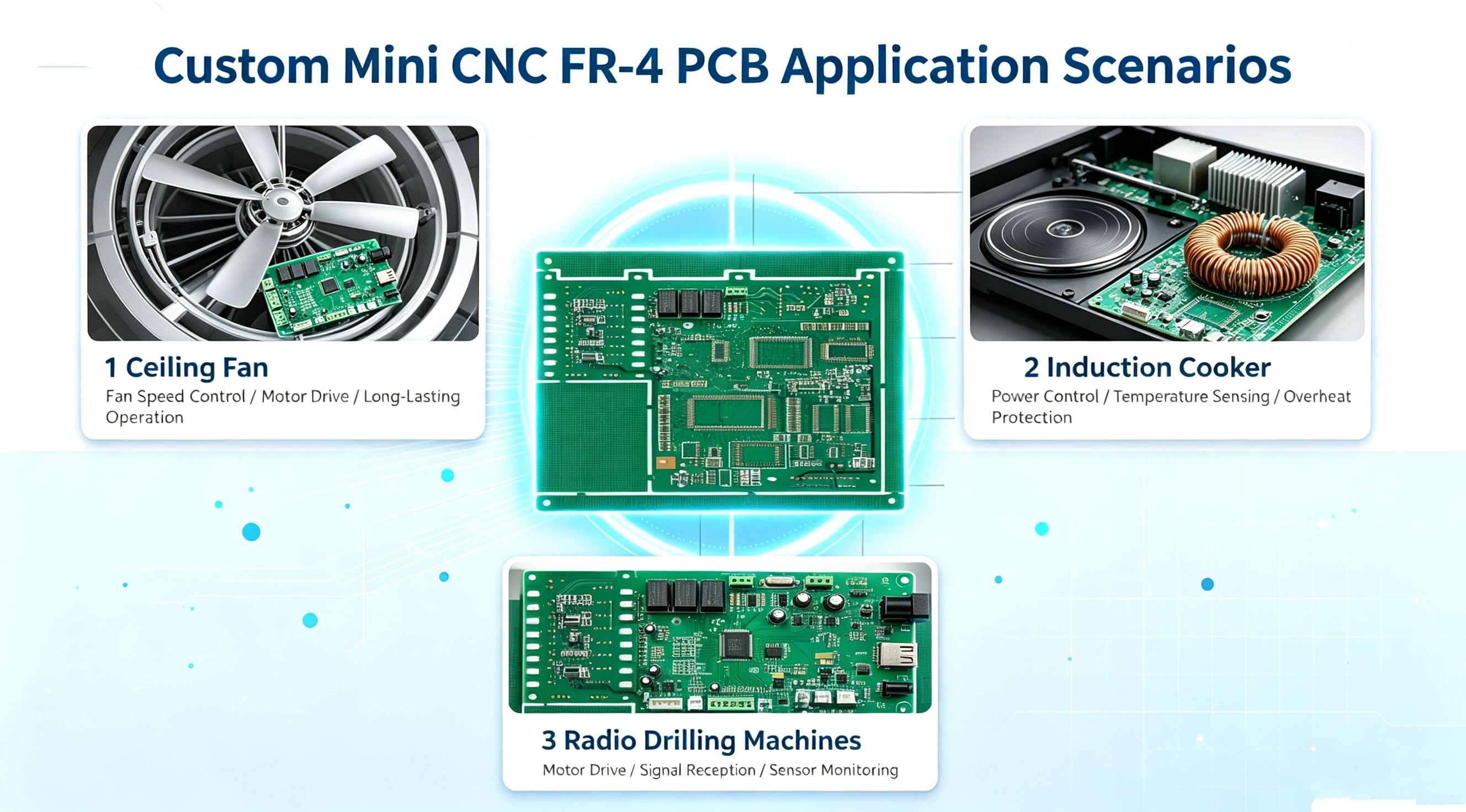

PCB Application Scenarios

1. Ceiling Fan

Our custom FR‑4 PCBs serve as the core control board for ceiling fans. They handle fan speed regulation, forward/reverse rotation switching, and motor protection functions.Featuring high mechanical strength and reliable temperature resistance, these PCBs deliver stable long‑time operation for household and commercial ceiling fan equipment.

2. Induction Cooker

For induction cookers, the FR‑4‑based PCB undertakes power drive, temperature sensing, over‑heat protection and user interaction signal processing.

With excellent flame‑retardant and heat‑dissipation performance, it adapts to the high‑temperature working environment of kitchen heating appliances

and guarantees safe & consistent cooking performance.

3. Radio Drilling Machines

In radio drilling machines, the custom mini CNC FR‑4 PCB controls motor drive, signal receiving, sensor feedback and working‑status monitoring.

Compact layout design fits limited internal device space, supporting precise, continuous operation for industrial drilling equipment.


PCB Production Line

Contact us

Website: www.xdpcba.com

Email: sales@xdpcba.com, sales6@xdpcba.com

Quote Now

Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours

First Name
Last Name
Phone Number
E-mail Address *
Image Upload Drag the file into this area, or click Upload. (Supports compressed files, Word, Excel
and other file formats)
You Message Descriptions
By submitting this form, you consent to the storage of your data and your interests in order to answer your enquiry. Further information on data processing, your rights and revocation can be found in our privacy policy.

Related Products

Fr4 Blue solder mask

Blue solder mask FR4 PCB with quick-turn prototype support.
Quote Now
Fr4 panel PCB board

The product linearity can reach 0.3%, which is used for motor angle position control.
Quote Now
Fr4 Immersion gold PCB

Reliable FR4 PCB for industrial control and consumer electronics.
Quote Now

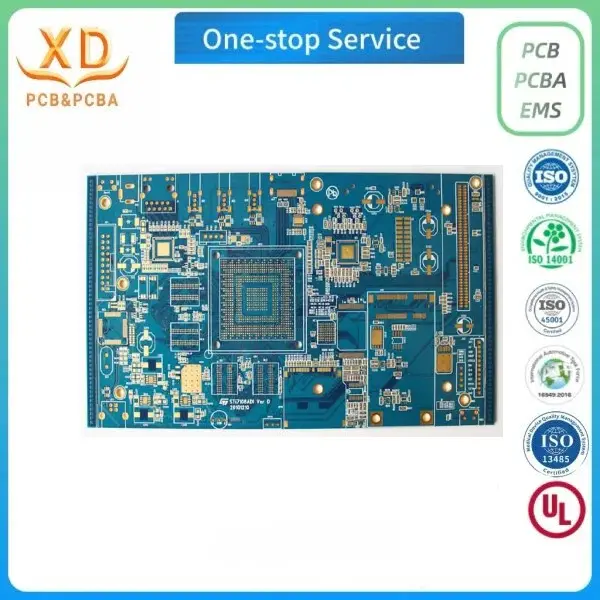

4-layer industrial impedance printed circuit boards pcb Industrial control china pcb instrumentation electric circuit board blank.
