Process Specification
PCB Base: FR4 TG130/TG150, 1.6mm board thickness, 2/4 layers optional
Copper Thickness: 1oz/2oz, stable current load capacity
Assembly Process: Full SMT + DIP mixed assembly
Surface Treatment: ENIG, HASL, Immersion Silver
Quality Standard: IPC-A-610, RoHS, IEC62052 metering standard
Testing Process: AOI inspection, electrical testing, aging test

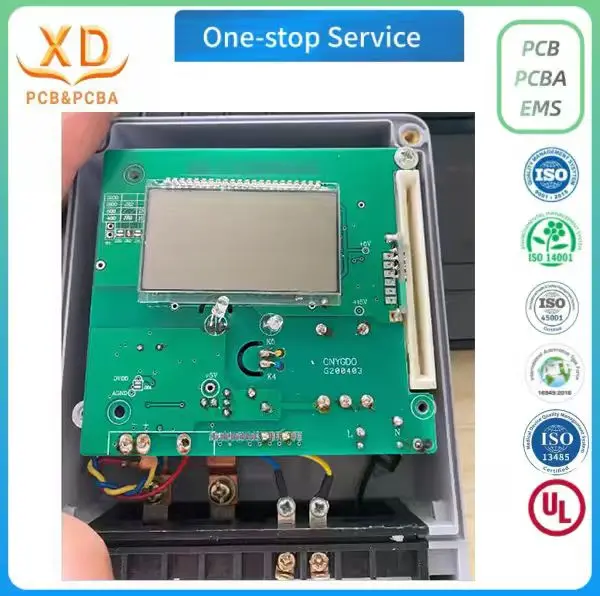

Household Smart Energy Meter:
Custom smart meter circuit board and PCBA for single-phase residential meters
and prepaid household meters, ensuring long-term accurate metering and stable operation.
Industrial Three-Phase Meter:
Professional energy meter PCBA for industrial three-phase power meters,
adapting to complex industrial power environments and high-load working conditions.
IoT Smart Power Meter:
Support NB-IoT, 4G, and carrier communication smart meters,
perfect for remote data transmission and intelligent grid monitoring systems.
Commercial Prepaid Meter:
Stable PCBA solution for DIN rail meters and commercial prepaid energy meters,
widely used in buildings, factories, and public power management.
Full Automatic SMT Workshop: Equipped with a high-speed chip mounter, solder paste printer
and reflow oven to realize high-precision batch assembly of smart meter circuit boards.
Standard DIP Production Line: Professional plug-in welding line for meter PCBA special components,
ensuring reliable welding quality of high-current and high-precision parts.
Strict Quality Control Area: Equipped with an AOI detector, an electrical testing instrument, and aging test bench,
100% inspection for finished energy meter PCBA.
Mass Production Capacity: Support OEM customization, prototype trial production,
and large-scale batch order delivery for global smart meter manufacturers.
We provide one-stop full-service solutions covering PCB manufacturing,
electronic component procurement, and finished smart meter PCBA assembly for global customers.
From raw material sourcing, precision processing,to finished product testing,
we strictly control every process to deliver high-quality energy meter circuit board products.
Professional SMT & THT Technology:
Mature surface-mounting and through-hole soldering technology for stable and reliable meter PCBA assembly.
Full-Range Component Packaging Capability:
Support SMT processing for multiple component sizes including 01005, 0201, 0402, 0603, 0805
and 1206, adapting to high-density meter circuit boards.
Complete Testing System:
Equipped with ICT (In Circuit Test) and FCT (Functional Circuit Test) technology
to ensure 100% circuit integrity and metering function accuracy.
Global Standard Compliance:
All PCB assembly products comply with UL, CE, FCC and RoHS certifications,
meeting international market access requirements.
High-End Welding Process:
Adopt nitrogen gas reflow soldering technology for SMT to improve welding quality,
reduce oxidation and enhance product stability.
Large-Scale Production Capacity:
Own 8 high-standard SMT production lines and 6 solder assembly production lines
to support mass and customized orders.
High-Density PCB Assembly Technology:
Master high-density interconnected board placement technology, suitable for compact
and high-precision smart meter circuit board design.
Contact us for any help regarding your electric meter PCB
Website: www.xdpcba.com
Email: bluesky@xdpcba.com
Sales10@xdpcba.com
Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours

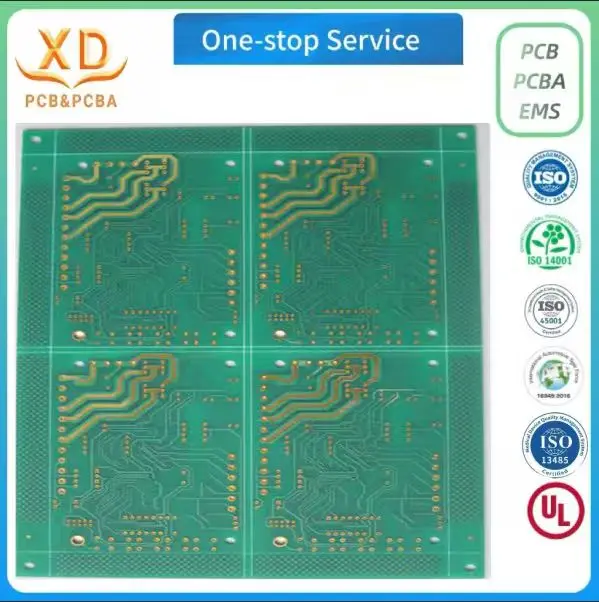

Custom high precision metering PCB for smart energy meter. We manufacture single-phase & three-phase energy meter bare PCB and PCBA assembly. Designed with strict high-low voltage isolation, meet IEC & IPC standards, anti-interference for accurate energy measurement. Support PCB layout, prototype and mass production for meter manufacturers.
