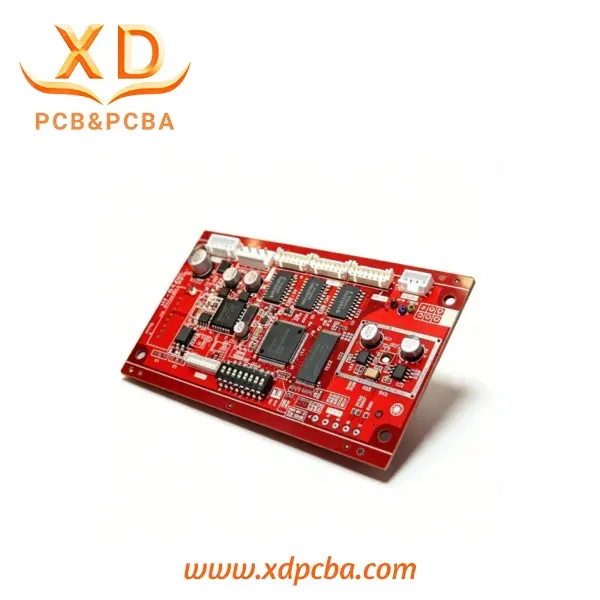

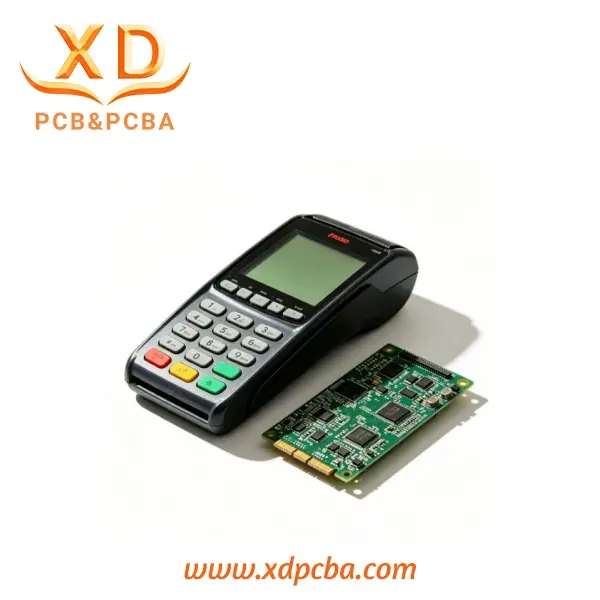

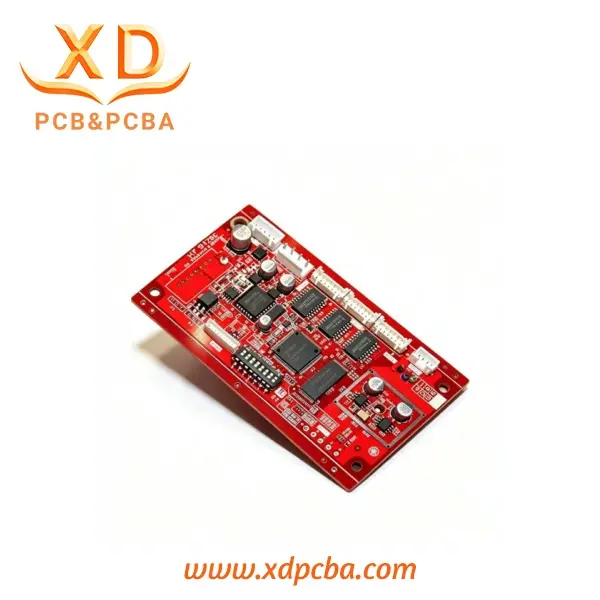

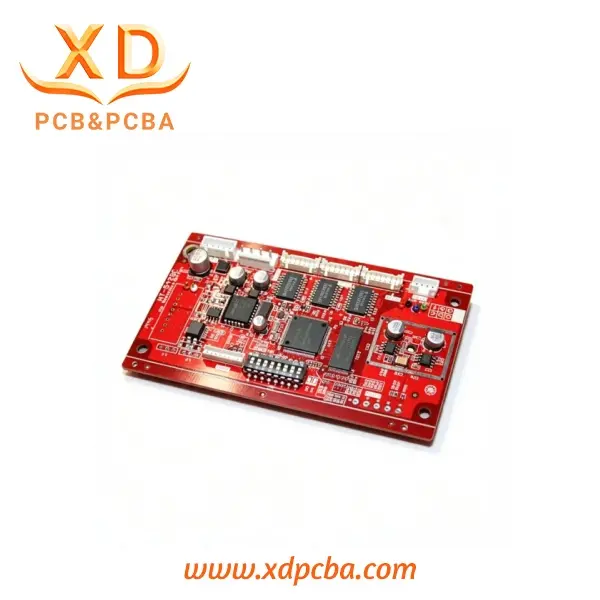

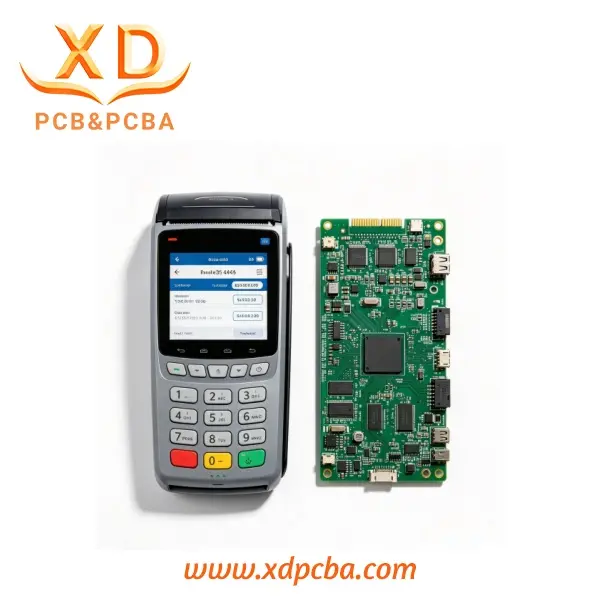

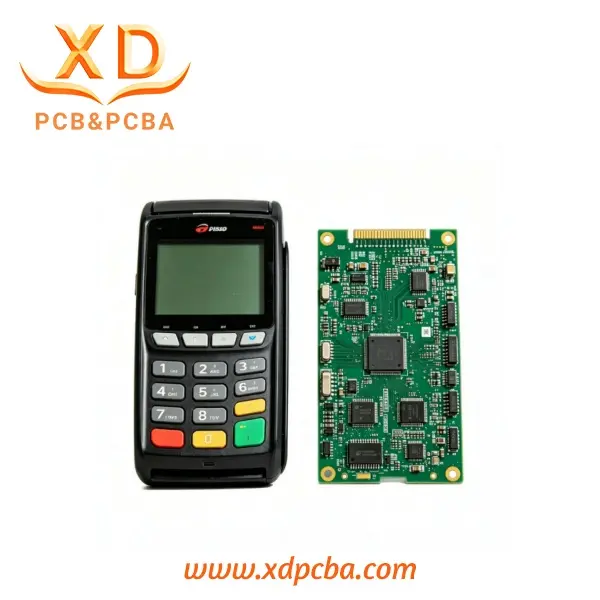

OEM POS assembly pcb PCBA for Retail and Self-Service Kiosk

Place of origin: China
Material: FR4, HDI
Board thickness: 0.7mm to 1.0mm
Offer:
Range of copper thickness: 0.5oz-1.5oz

Quote Now

POS PCBA Processes

1. PCB Type: 8-Layer 2-Step or 10-Layer 3-Step HDI board

2. Inspection: X-ray inspection of BGA and LGA solder joints ensuring void-free connections

3. Packaging Form: BGA for Main Control Chip and Secure Element, LGA for RF Modules(4G, Bluetooth, WiFi)

4. Mini components Package: 01005

5. Environmental Adaptability Processes: Conformal Coating+Selective Potting

POS PCBA Application Scenarios

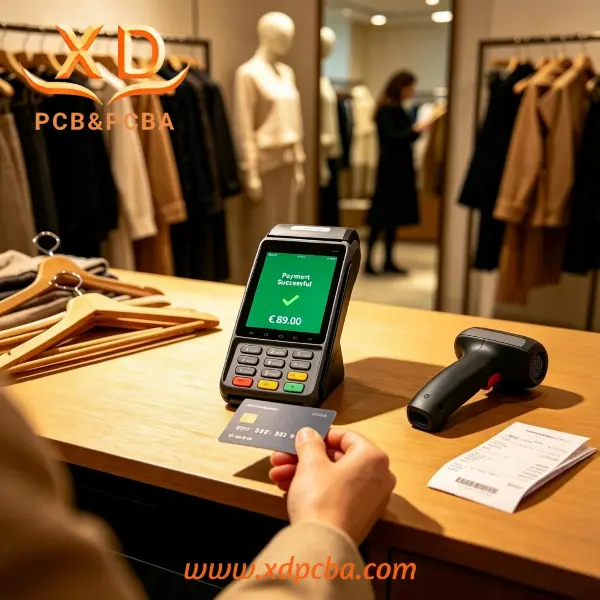

1.POS machines are widely used in retail consumption venues, such as snack shops, clothing stores and convenience stores.

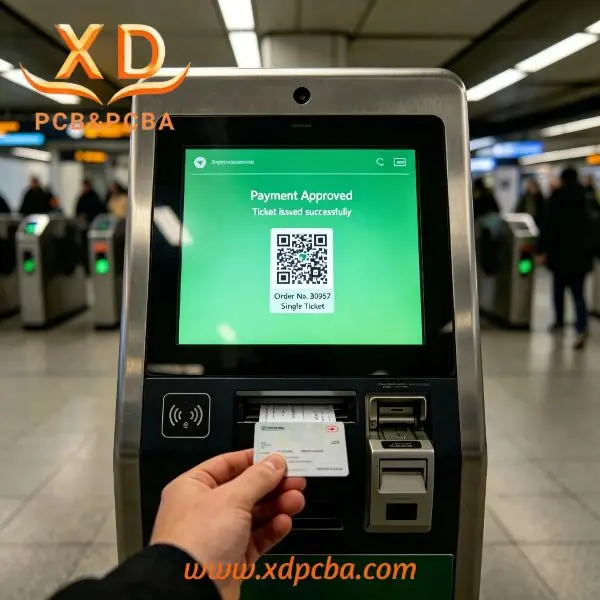

2.POS terminals are also very common in public service areas such as hospital stations.

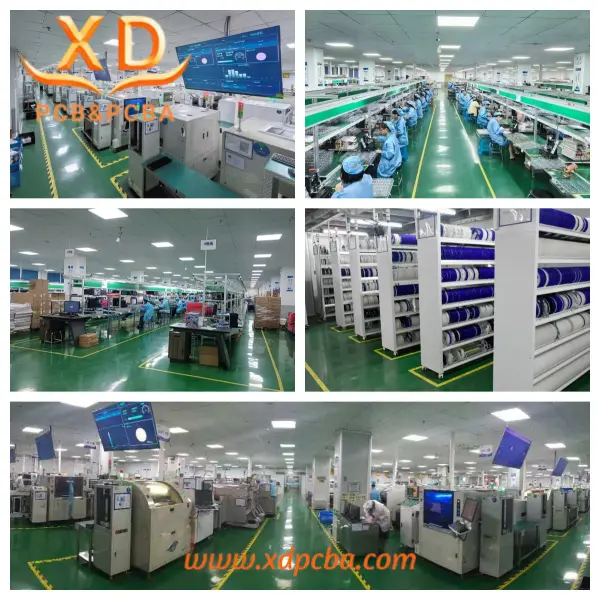

POS PCBA Production Line

Our Business Model

1.Professional OEM/EMS Manufacturing Services:

XingDa offers one-stop OEM and EMS services for POS terminals.

For small-sized POS, we provide full-turnkey manufacturing, from PCBA all the way to finished product assembly (including casing integration).

For large-sized POS, our service scope is limited to PCBA production – we do not offer enclosure assembly or finished product integration (Box Build).
In both cases, customers simply provide Gerber files and a BOM list, and we handle the rest up to the agreed scope.

2.Personalized ODM Design Services -PCBA Only for POS (No Box Build)

As a professional manufacturing service provider, we also have strong external resources. Relying on long-term, in-depth partnerships with experienced

professional POS PCBA design and solution development teams, We offer end-to-end ODM customization services exclusively for PCBA – from concept

to final PCBA delivery, without enclosure assembly or box-build integration.
