Home > Products > PCB > Special PCB > Medical Grade 8-Layer RF PCB ENIG Finish High Stability Board

Medical Grade 8-Layer RF PCB ENIG Finish High Stability Board

Place of origin: China
Material: FR-4,Rogers and Arlon
Board thickness: 0.2mm-6.0mm
Offer:
Range of copper thickness: 0.5oz-2.0oz

Quote Now

PCB Process

Item	Specifictions	Item	Specifictions
Base Material	FR-4,Rogers and Arlon	Silkscreen	White/Black/Yellow
Layer Count	1-38 Layers	Min. Trace Width/Space	3mil/3 mil（0.075mm）
Board Thickness	0.2mm-6mm	Min. Hole Size	0.1mm(CNC Drilling) / 0.6mm (Punching)
Copper Thickness	0.5oz-12oz(18μm - 420μm)	Impedance Control	Available
Surface Finish	HASL/ENIG(Gold)/OSP/Immersion Gold	Testing	Electrical Test
Solder Mask	Green/White/Red/Blue/Black	Certification	ISO9001 / UL /ISO14001/IATF16949/ RoHS

PCB Application Scenarios

PCB Production Line

Cutting→ Drilling→ PTH → Copper Plating → Pre-treatment → Dry Film Lamination → Exposure→ Developing

→ Etching→ Stripping →Surface Treatment→ Coverlay Lamination → Stiffener Attachment → Baking→ Silkscreen

→ E-test → Punching/Laser Cutting → Product → Packaging

Contact Us

Contact us for any help regarding Medical Grade 8-Layer RF PCB:

Website: www.xdpcba.com

Email:sales@xdpcba.com sales4@xdpcba.com

Quote Now

Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours

First Name
Last Name
Phone Number
E-mail Address *
Image Upload Drag the file into this area, or click Upload. (Supports compressed files, Word, Excel
and other file formats)
You Message Descriptions
By submitting this form, you consent to the storage of your data and your interests in order to answer your enquiry. Further information on data processing, your rights and revocation can be found in our privacy policy.

Related Products

6-Layer Medical HDI PCB Elite Interconnect for Healthcare

Our 6-layer HDI PCBs are the premier choice for high-precision medical imaging, diagnostic workstations, and advanced life-support systems. Featuring advanced multilayer laser micro-via technology, these boards enable extreme routing density while maintaining dedicated ground and power planes to ensure zero-latency signal integrity. Engineered for medical-grade reliability, our boards support complex BGA packages and high-speed data processing in compact clinical devices.
Quote Now
Medical Grade 8-Layer RF PCB ENIG Finish High Stability

This premium 8-layer High-Frequency PCB is specifically engineered for advanced medical imaging and diagnostic equipment. Featuring a multi-layer stack-up, it provides superior EMI shielding to protect sensitive signals in dense medical environments. The Immersion Gold (ENIG) finish ensures exceptional surface flatness for high-density component assembly and long-term reliability. Optimized for stability and precision, it is the ideal choice for high-end healthcare systems.
Quote Now

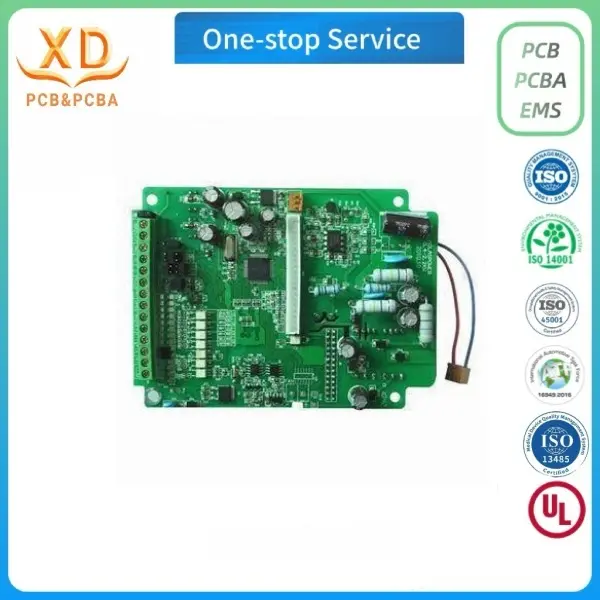

Medical Grade RF PCB 4-Layer High-Precision FR4 Board
