Detail specification
High-Tg Substrate
FR-4 with Tg ≥170°C (DSC), Z-axis CTE ≤50 ppm/°C; withstands 260°C lead-free reflow multiple times.
Preventing board warpage and delamination under high power and thermal cycling.
Most Challenging: Drilling high-Tg materials (brittle, prone to burrs) and controlling resin flow during lamination.
Conformal Coating
Polyurethane (UR) or silicone (SR), 50–80 μm thickness; passes salt fog (5% NaCl, 48 h), condensation,
and 85°C/85% RH for 168 h.
Outdoor corrosion and moisture protection – essential for field durability.
Selective coating of connectors, test points, and heatsinks; achieving uniform thickness and adhesion, plus rework difficulty.
Solder Joint & Mechanical Robustness
Power component shear force ≥15 kgf; BGA voiding <15%; passes 2g vibration (5–500 Hz) and 30g mechanical shock.
Withstanding road-induced vibrations and thermal-mechanical stress.
Balancing large thermal-mass joints with small BGA voids – requires tight reflow control and X-ray screening.
EV charger Application Scenarios

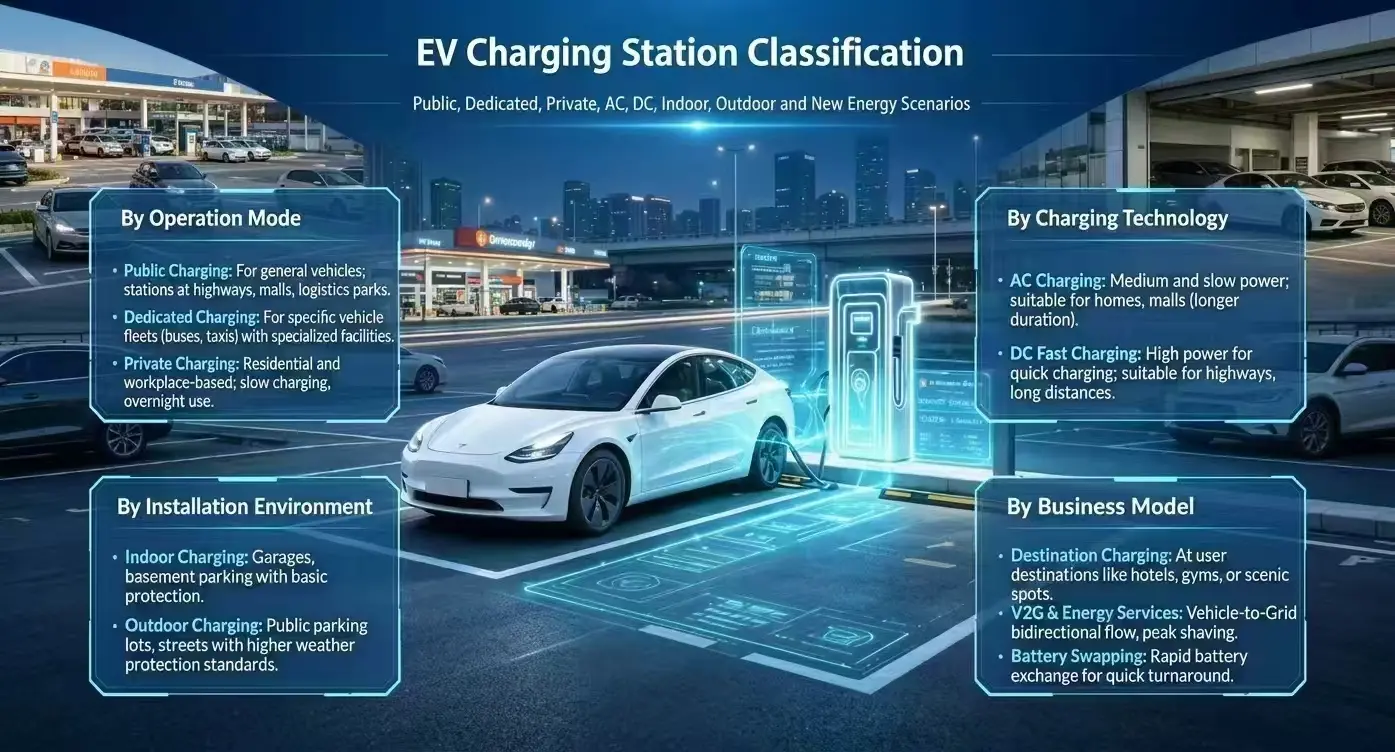

By Operation Mode：
Public Charging：Open-access charging facilities deployed at highways, shopping malls and logistics parks for all general EVs.
Dedicated Charging：Special-purpose charging infrastructure built exclusively for specific vehicle fleets such as buses and taxis.
Private Charging：Low-speed overnight charging solutions installed at homes or workplaces for personal-use electric vehicles.
By Charging Technology：
AC Charging：Medium-slow power charging option with longer charging cycles, ideal for households and shopping-mall scenarios.
DC Fast Charging：High-power rapid charging technology designed for highways and long-distance travel to shorten charging time.
By Installation Environment：
Indoor Charging：Charging equipment placed in garages and underground parking lots with fundamental environmental
protection measures.
Outdoor Charging：Charging piles set up in open-air public parking lots and streets, complying with strict
weather-resistance standards.
By Business Model：
Destination Charging：Charging services offered at end-user venues including hotels, fitness centers and tourist attractions.
V2G & Energy Services：Vehicle-to-grid bidirectional energy interaction that supports grid peak-shaving and
other energy-related applications.
Battery Swapping：Quick-turnaround service that realizes fast energy replenishment through direct battery replacement.
EV charger PCBA Production Line
Our Business Model
1.We can offer you professional manufacture:
a.) OEM PCBA for your EV-charger: PCB+Components+Assembly
b.) OEM(PCB+components+assembly+case) for your whole EV-Charger: PCB+Components+Assembly+Housing/Case mold
2.If you don’t have mature design,we have strong external resources:
We have long-term cooperative professional EV charger design companies with rich experience to customize your products：
a.) ODM for your whole EV-Charger: Design+PCB+Components+Assembly+Housing/Case mold
b.) EMS for your whole EV-Charger:PCBA+Housing/Case mold+Assembly+Function test+Packing
Contact us
Contact us for any help regarding EV charger PCBA
Website: www.xdpcba.com
Email: sales@xdpcba.com；sales4@xdpcba.com
0755-27781532-8010; 02988446863
