Detail specification
Clearance & Creepage
Creepage ≥8.0 mm, clearance ≥5.5 mm; dielectric withstand 3750 VAC/60 s.
Most Critical: User safety and compliance with CCC/CE/UL.
Most Challenging: Maintaining these distances while densely packing power and control circuits – often requires board slots or insulating barriers.
Heavy Copper & Thermal Rise
Power traces ≥3 oz (selective 6 oz); temperature rise ≤45°C at 40°C ambient under full load.
Most Critical: Ensuring ampacity and long-term reliability.
Most Challenging: Etching heavy copper with minimal side-etch, and soldering large pads without heat soak issues.
Impedance & Signal Integrity
CAN/RS485 diff: 120 Ω ±10%; single-ended: 50 Ω ±10%; board-wide deviation ≤5%.
Most Critical: Stable communication with BMS and vehicle controllers.
Most Challenging: Compensating for dielectric constant drift (due to moisture/temperature) and the influence of thick copper on impedance.
EV charger Application Scenarios
Home-Night Charging：Your Safe Harbor, Your Energy Sanctuary
Convenient home charging lets you replenish your electric vehicle overnight while your family rests comfortably at home.
Retail-Public Charging：Life Uninterrupted, Power While You Enjoy
You can top-up your EV at public charging stations while shopping and enjoying leisure time in commercial districts.
Highway Fast Charging：Fast Charge the Adventure, No Pause Too Long
High-speed highway charging efficiently refuels your car to minimize waiting time and keep your road trip going.
Office Urban Charging：Charge the Future, Power Your Ambition
Urban office-area charging supports reliable power supply for your smooth and confident daily commute to work.

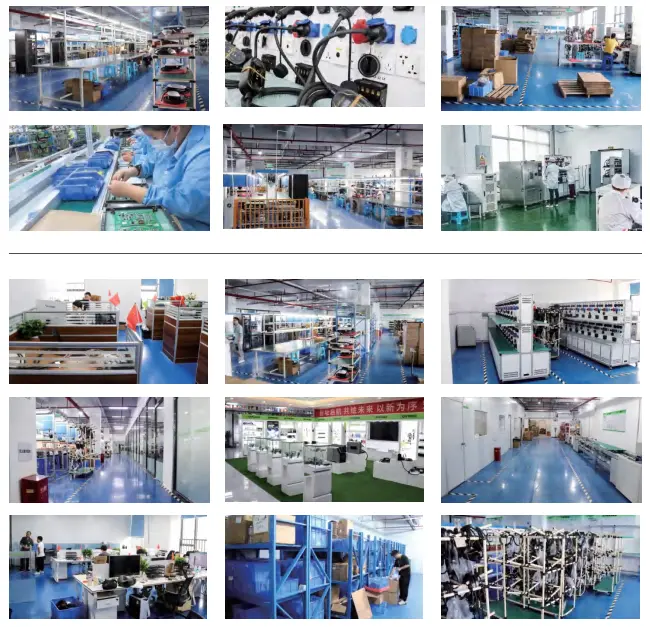

EV charger PCBA Production Line
Our Business Model
1. Professional OEM/EMS Manufacturing Services:
XingDa offers one-stop OEM and EMS electronic manufacturing services, covering the entire process from PCBA to finished
product assembly. Customers only need to provide Gerber documents and a BOM list, and we can complete
the entire chain of delivery from PCB production, component procurement, PCBA assembly, to casing assembly.
2. Personalized ODM Design Services:
As a professional manufacturing service provider, we also have strong external resources. Relying on long-term,
in-depth partnerships with experienced professional smart ring design and solution development teams, we provide customers
with full-chain smart ring ODM customization services from concept to finished product.
Contact Us
Contact us for any help regarding EV charger PCBA
Website: www.xdpcba.com
Email: sales@xdpcba.com；sales4@xdpcba.com
0755-27781532-8010; 02988446863
