LED Aluminum PCB Board Custom Round LED Blank Aluminum PCB For CCTV Infrared Lamp

Place of origin: China Shen zhen
Material: 5052‑H32 / 6061‑T6 Aluminum Alloy
Board thickness: 0.4mm‑3.0mm
Offer:
Range of copper thickness: 1‑6OZ

Quote Now

Contact Us

Website: www.xdpcba.com

Email: bluesky@xdpcba.com

Sales10@xdpcba.com

Aluminum PCB Production Line

We maintain a complete manufacturing workshop for aluminum PCBs.

Every procedure including raw material incoming check, cutting, imaging, etching, solder mask printing,

AOI inspection, electrical test, final QA and packaging is strictly monitored.

Stable quality is guaranteed for LED light circuit boards.

Both custom samples and mass‑volume orders are welcome.

Aluminum PCB Application scenarios

CCTV Security Infrared Lamp

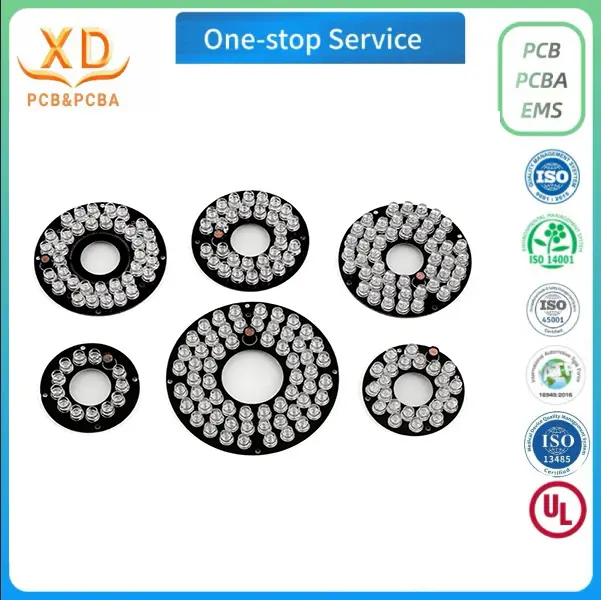

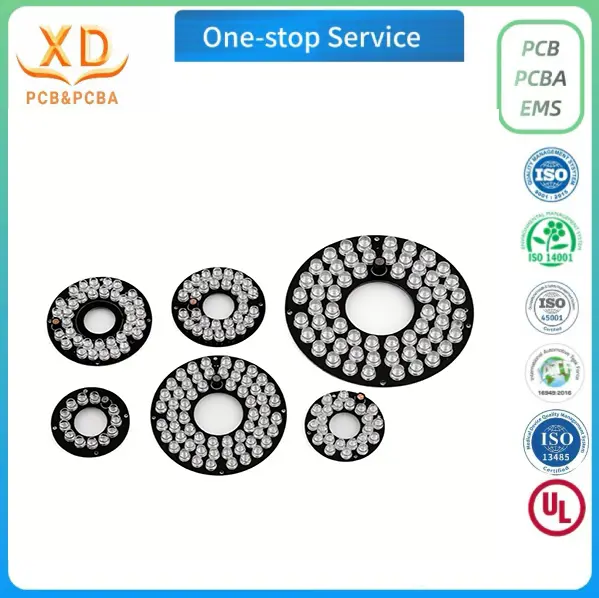

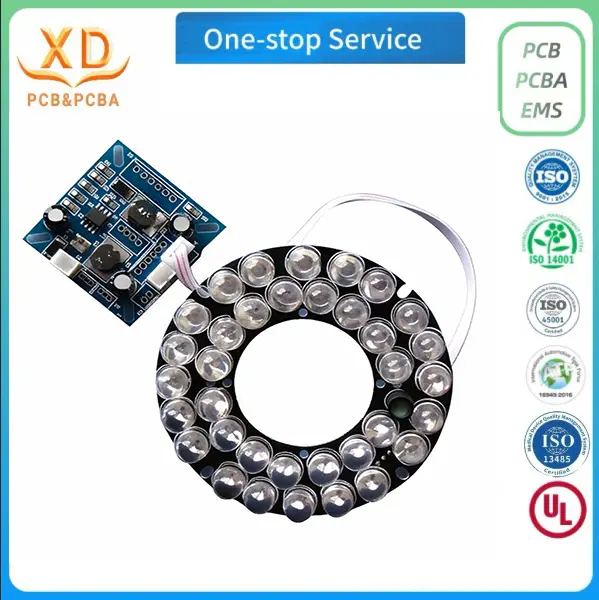

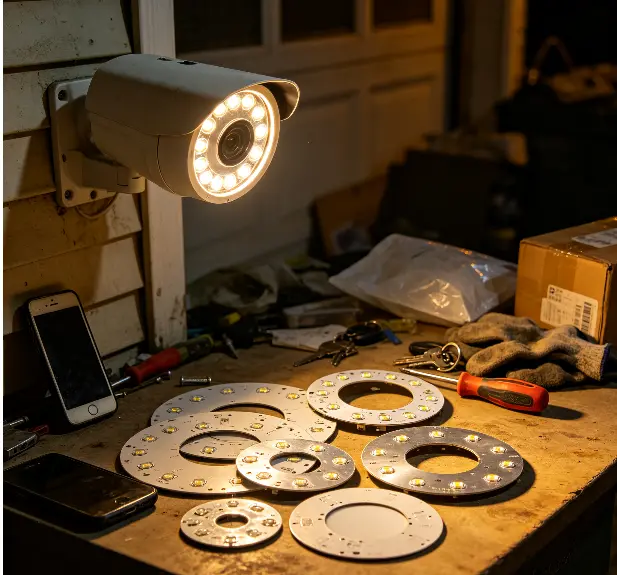

CCTV Security Infrared Lamp Custom round annular aluminum pcb for security camera IR supplementary lamp.

Multiple sizes blank led pcb board available for different surveillance camera modules.

LED Monitoring Fill‑in Light

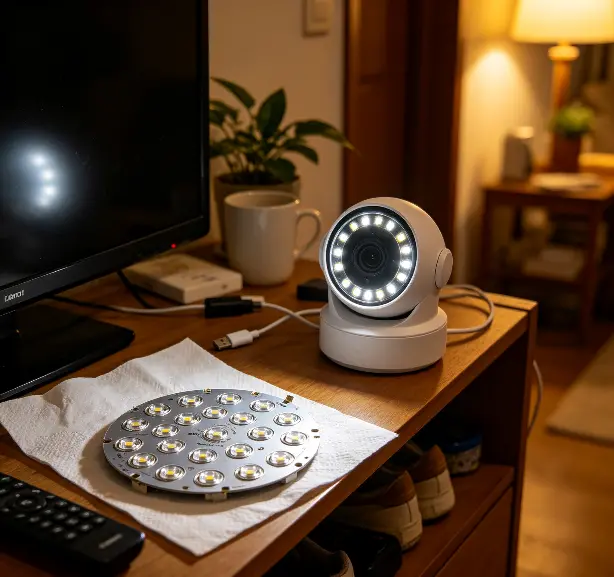

LED Monitoring Fill‑in Light Suitable for monitoring infrared fill light, night‑vision auxiliary lighting.

High heat‑dissipation aluminum base ensures stable long‑time working of IR LED beads.

Custom LED Lighting Module

Custom LED Lighting Module Support led pcb board design for special‑shape LED modules, circular lamp board, special‑purpose lighting equipment. Bare blank pcb or full PCBA service are optional.

Other LED Lighting Equipment

Other LED Lighting Equipment Also applicable for spot light, indicator lamp, small‑size high‑power LED lighting products with heat dissipation requirements.

Aluminum PCB Process Specification

Process Specification

1.Board Type: Single board, insulation board, double sided board
2.Finished Board Thickness: 0.4mm‑3.0mm

3.Copper Thickness: 1OZ‑6OZ; Outside copper thickness:18‑105μm; Core copper thickness:18‑35μm

4.Min.Trace Width & Line Spacing: 0.15mm

5.Max Processing Size: 120cm*60cm

6.Surface Treatment: OSP, HASL, Immersion Gold, Immersion Tin (lead free), Immersion Silver

7.OSP Thickness: 0.20‑0.40um

Specific process information

Quote Now

Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours

First Name
Last Name
Phone Number
E-mail Address *
Image Upload Drag the file into this area, or click Upload. (Supports compressed files, Word, Excel
and other file formats)
You Message Descriptions
By submitting this form, you consent to the storage of your data and your interests in order to answer your enquiry. Further information on data processing, your rights and revocation can be found in our privacy policy.

Related Products

Aluminum PCBs LED Light Circuit Board High Thermal Conductivity LED PCB For LED Lighting

Our LED aluminum PCB is a metal‑based heat‑dissipating printed circuit board specially developed for the LED lighting industry. It consists of aluminum substrate, thermally insulating dielectric layer and conductive copper foil. Compared with conventional FR‑4 PCBs, aluminum PCBs deliver outstanding heat dissipation, low thermal resistance, high mechanical strength and stable dimension performance. It can rapidly transfer heat generated by LED chips, lower LED junction temperature, reduce light
Quote Now

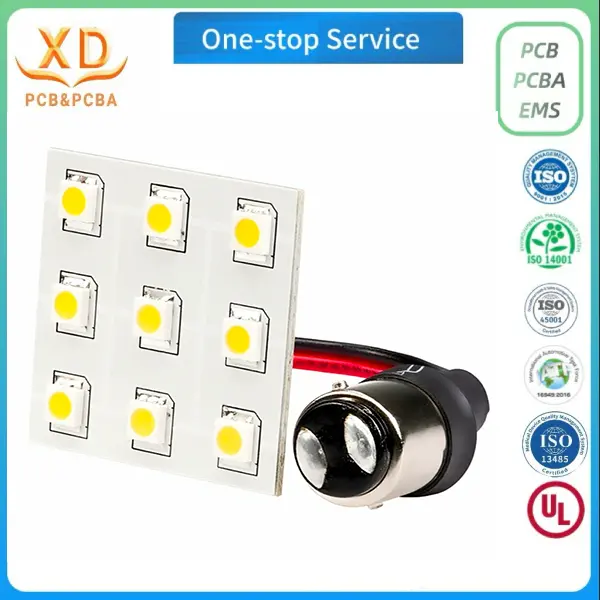

SMD LED PCB Board Custom SMD LED Aluminum PCB For LED Lighting Module

Custom smd led pcb board, high heat dissipation led smd aluminum base pcb. Support Gerber‑based design, blank bare pcb and full SMD PCBA assembly. Various shapes including square, rectangle, circular available for multiple LED lighting modules.
Quote Now

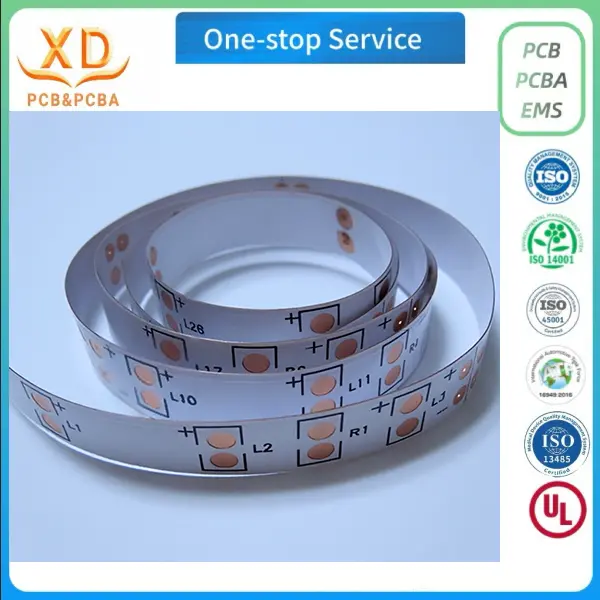

LED Bulb PCB Board Custom Flexible LED Bulb Circuit Board For LED Light Bulb
