ENIG ceramic substrate ceramic printed circuit board DPC ceramic copper plating thick copper alumina circuit board hole filling pcb plate

  • Place of origin: China
  • Material: Alumina, Alumina Ceramic, Ceramic
  • Board thickness: 0.2mm-6mm
  • Offer: Leave your email to receive a discount coupon – we'll send it to you right away.
  • Range of copper thickness: 0.5oz-12oz(18μm - 420μm)
Quote Now

Product Details


1. Key Features of Ceramic Substrate PCB

l Excellent Thermal Conductivity

Ceramic PCB provides outstanding heat dissipation performance, helping efficiently transfer heat away from high-power components and improving product reliability.



l Superior Electrical Insulation

The ceramic substrate offers excellent dielectric properties and stable electrical insulation, making it suitable for high-voltage and high-power electronic applications.



l High Temperature Resistance

With excellent thermal stability and a low thermal expansion coefficient, ceramic PCB maintains reliable performance under harsh operating environments.



l Advanced Ceramic Metallization Technology

Using DPC (Direct Plated Copper) technology, copper layers are directly bonded with ceramic substrates to achieve excellent thermal and electrical performance.



l High Reliability for Power Electronics

Ceramic substrate PCB supports high current applications and provides long-term stability for power modules, semiconductor devices and automotive electronics.



l Customized Ceramic PCB Solutions

Customized ceramic PCB designs are available according to different material requirements, dimensions, copper thickness and application conditions.



2. Production Process:

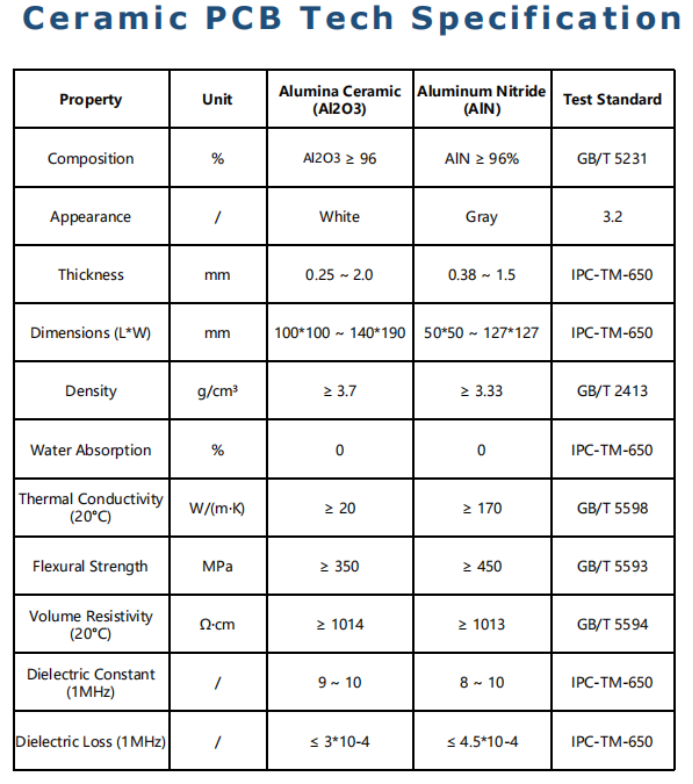

Specifications

Material

Aluminium nitride Ceramic /Alumina 99.5%/Alumina 99%

average crystal size

3-5um

volume density

≧3.74g/cm³

Vickershardness

≧15Gpa

flexural Strength

≧324Mpa

Linear Coefficient of Thermal
Expansion

605-7.56.5-8.0 1×10-˚mm/℃

thermal conductivity

≧170W(m-k)

Dielectric intensity

≧12Kv/mm

Volume Resistance

≧1014≧1011≧109Ω-cm

Dielectric Constant

9.3-10.6

dielectric loss

3×10-4

Thermal-shock

≧7times

roughness of the surface

0.20-0.75μm

Product highlights:

DPC alumina & aluminum nitride ceramic copper plating processing (surface copper max: 210um, hole filling aspect ratio max5:1)

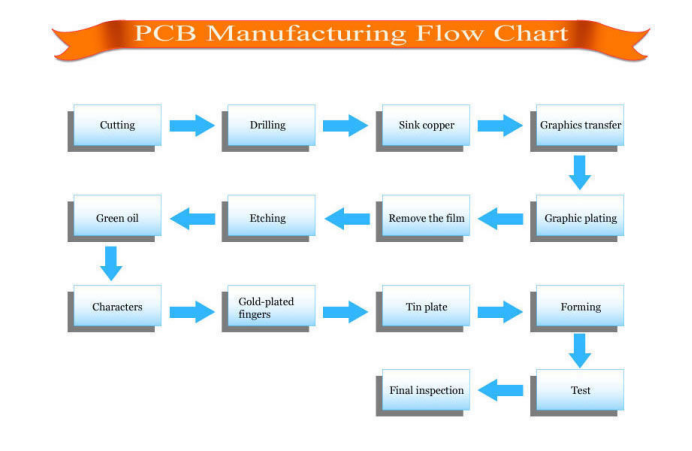

3. PCB Manufacturing Process


4. Key Specifications


Attention: pictures are for reference only. The specific products are subject to the original factory model.




5. Contact Us

Contact us for any help regarding ceramic PCB.
