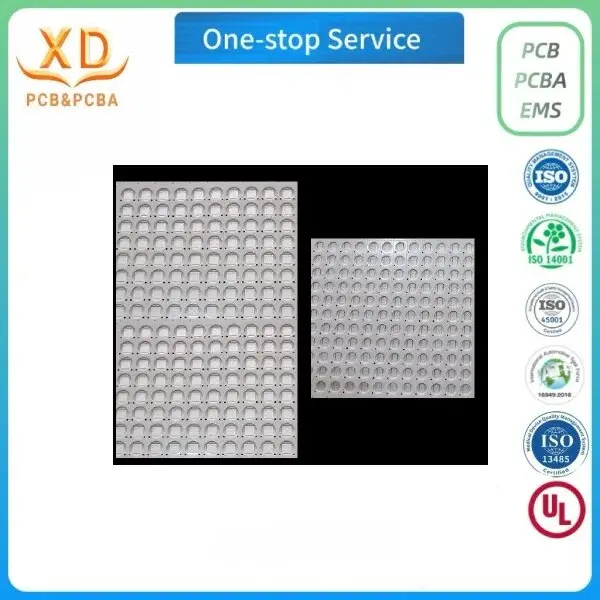

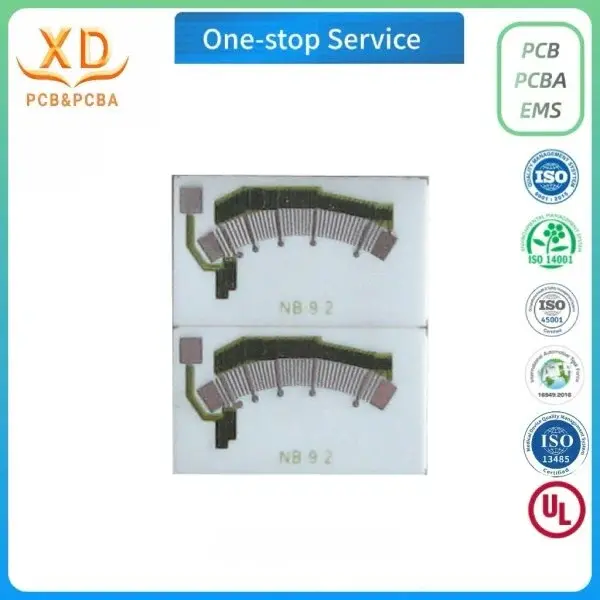

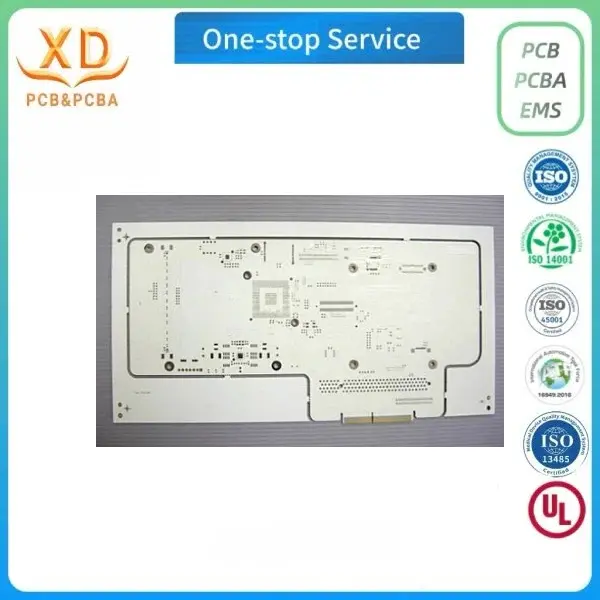

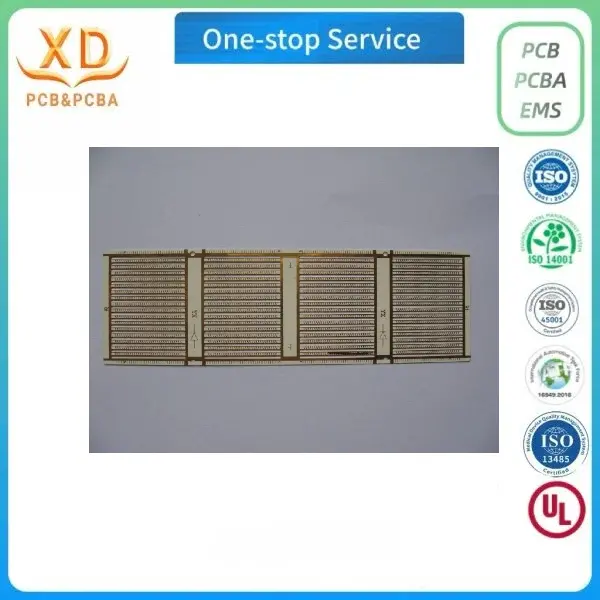

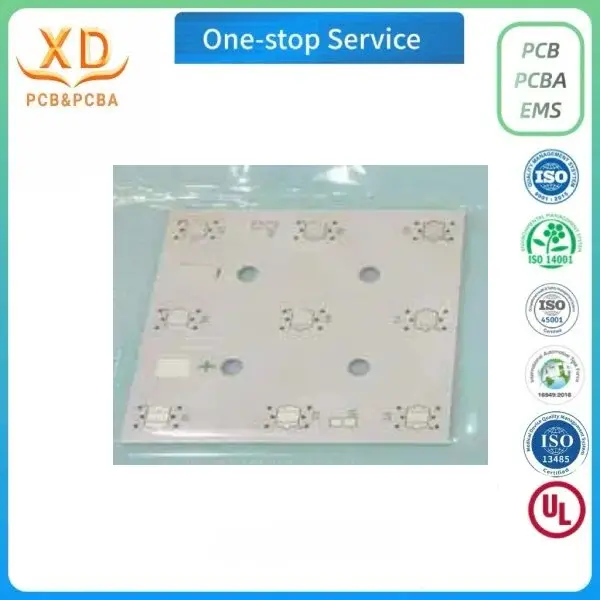

l Substrate Material: Alumina (Al₂O₃), 96% / 99.6% purity grades
l Thermal Conductivity: 24 W/mK (96% Al₂O₃) / 29 W/mK (99.6% Al₂O₃)
l Dielectric Constant: 9.0-10.0 @ 1 MHz
l Breakdown Voltage: ≥ 15 kV/mm
l Operating Temperature Range: -55°C to +800°C
l Minimum Line Width / Spacing: 0.1 mm / 0.1 mm (thick-film) ; 0.05 mm (thin-film)
l Metallization Options: Ag, Ag-Pd, Au, Cu, Ni/Au plating
l Circuit Technologies: Thick-film printing / Thin-film sputtering (DPC) / DBC (Direct Bond Copper)
l Available Types: Single-layer / Double-layer / Multilayer ceramic PCB; Blank ceramic substrate
l Inspection & Testing: X-ray inspection, dielectric strength testing, thermal cycling test, AOI

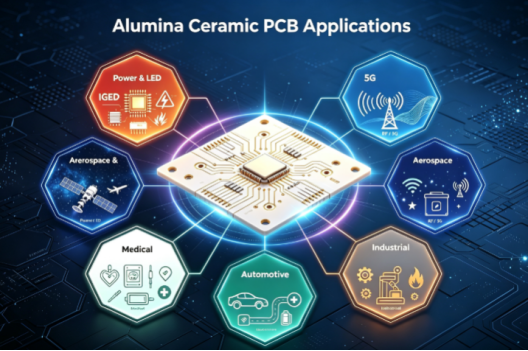

Alumina ceramic PCB boards are widely used across multiple high-reliability industries:
1. Power Electronics & LED Lighting – High-power LED modules, IGBT power modules,
and automotive electronics benefit from alumina PCB's excellent thermal dissipation.
2. RF/Microwave & 5G Communications – Alumina substrates with stable dielectric
properties are ideal for RF amplifiers, microwave filters, base stations, and 5G communication modules.
3. Aerospace & Defense – Ceramic PCBs are extensively used in avionics, satellite
systems, guidance systems, and military electronics.
4. Medical Electronics – Implantable medical devices, CT scanners, surgical instruments,
and diagnostic equipment leverage alumina's biocompatibility and chemical inertness.
5. Automotive & New Energy Vehicles – Used in battery management systems (BMS),
EV traction inverters, fast chargers, and motor controllers.
6. Industrial & High-Temperature Sensors – Pressure sensors, gas sensors, and
thermocouple assemblies in harsh industrial environments.

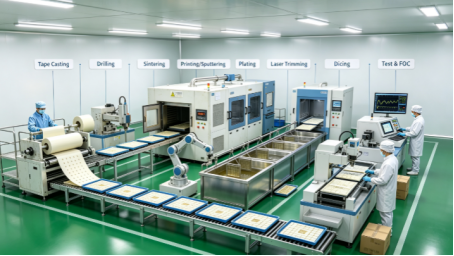

Standard Alumina Ceramic PCB Production Flow:
Tape Casting → Drilling → Sintering → Screen Printing / Sputtering → Plating → Laser Trimming → Dicing → Electrical Test & FQC
Contact us for any help regarding Alumina Ceramic PCB Board manufacturing.
Website: www.xdpcba.com
Email: sales@xdpcba.com；bluesky@xdpcba.com
Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours
High-performance 96% Alumina Ceramic PCB with excellent thermal conductivity and electrical insulation. Customized ceramic circuit boards for LED, automotive, power electronics and communication applications.
Quote Now
We are an OEM manufacturer of alumina ceramic PCBs. Our 1.0mm alumina circuit boards feature 70UM copper thickness, ≥20 W/mK thermal conductivity, double-sided conductive metallization, and ENIG surface finish. Designed for medical device control cards and industrial applications, they support 0.04mm line width/spacing, impedance control, and blind/buried vias. Custom services include AlN, SiC, and ZrO₂ substrates. Available in multiple colors (white, black, gold, green, etc.) with fast 5-15 day
Quote Now
We are an OEM manufacturer of alumina ceramic PCBs. Our ceramic substrates feature 24 W/mK thermal conductivity, excellent electrical insulation, and 800°C heat resistance. Available in 96% and 99.6% purity grades, they support thick-film and thin-film processes. Ideal for high-power, RF/microwave, and extreme environments, they outperform FR4 in stability. Custom services include prototype boards, double-sided metallization, and multilayer ceramic boards.
Quote Now
High Thermal Conductivity Ceramic PCB Substrate is designed for high-power electronic applications requiring efficient heat dissipation and reliable electrical performance. Made with 96% Alumina Ceramic, this ceramic circuit board offers excellent thermal management, insulation properties and high-temperature stability. Ceramic PCB is widely used in LED lighting, power modules, semiconductor devices, automotive electronics and communication equipment. Customized ceramic substrate solutions are
