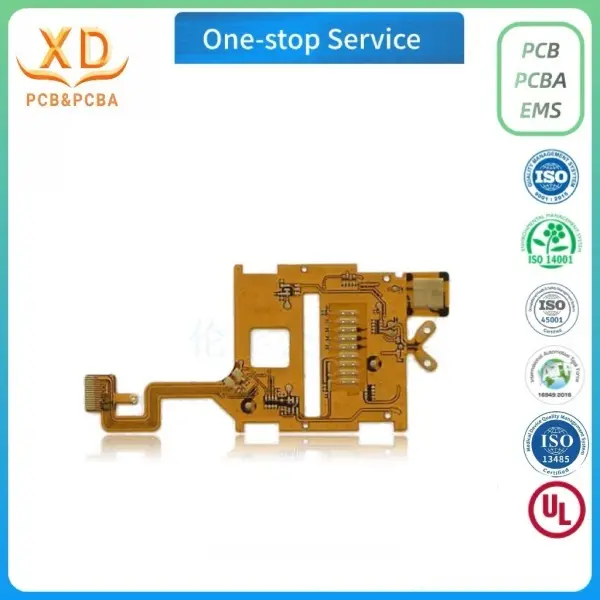

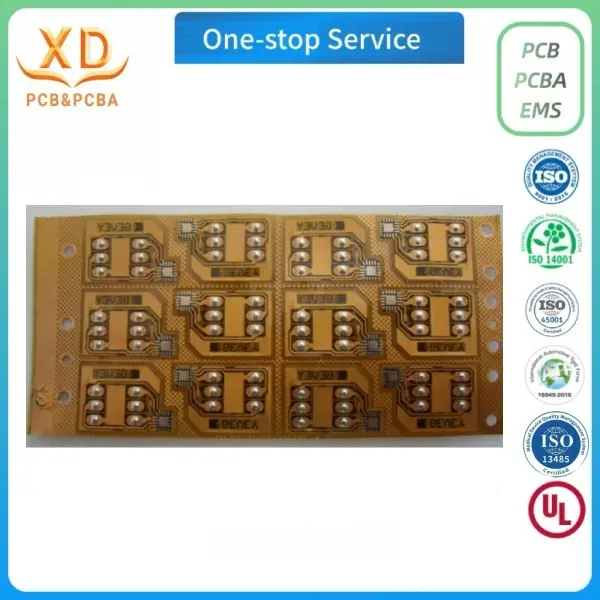

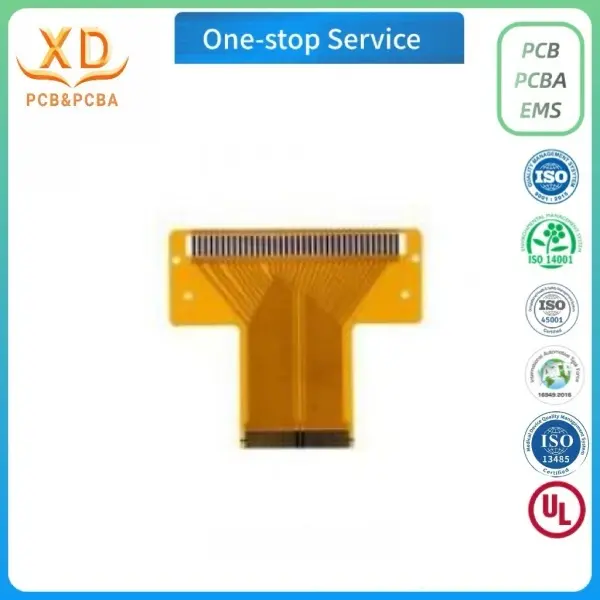

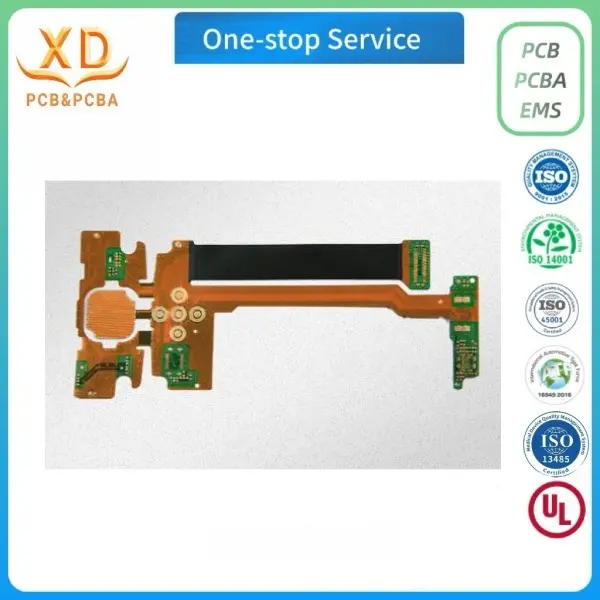

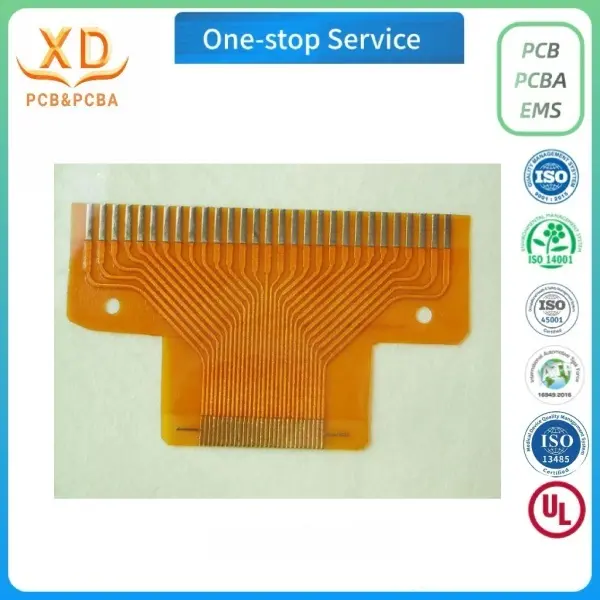

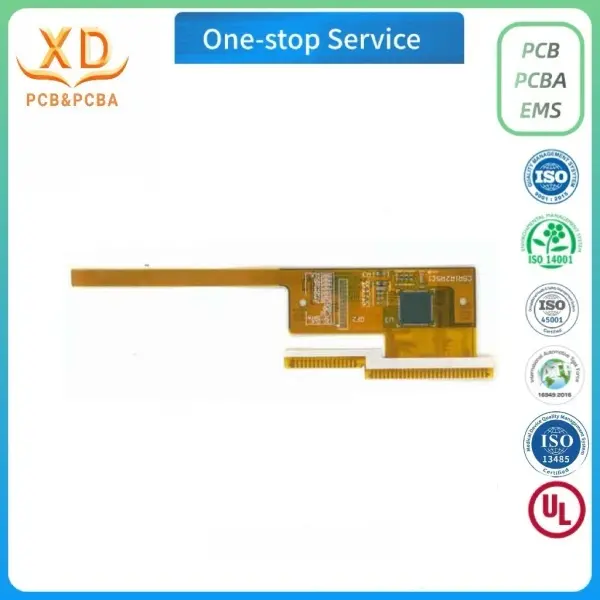

flexible boards 0.8mm Pitch FPC Connector Slim ZIFNon-ZIF SMT Socket Flexible circuit

Quote Now

Item	Specifictions	Item	Specifictions
Regular Base Materials	Kapton,Polyimide(PI),Polyester(PET),PC	Outline Fabrication	Die cut,laser cut,CNC routing,V-scoring
Layer Count	FPC:1-6 Layers;Rigid Flex:2-10 Layers	Min.Line Width/Spacing	0.04mm/0.04mm
Regular Base Material Thickness	FPC:12.5μm-50μm;Rigid:0.1mm-3.2mm	Blind or Buried Vias	Yes
Copper Thickness	1/3oz-6oz	Impedance Control	Yes
Surface Finish	Electroplate Ni/Au(Flash gold/Soft gold/Hard gold),ENIG,Immersion Tin,plated sliver,immersion silver,OSP,HASL	Testing	Electrical Test
Regular Thickness	Coverlay:27-50μm;Adhesive:12-25μm	Certification	ISO9001 / UL /ISO14001/IATF16949/ RoHS

Cutting→ Drilling→ PTH → Copper Plating → Pre-treatment → Dry Film Lamination → Exposure→ Developing→ Etching→

Stripping →Surface Treatment→ Coverlay Lamination → Stiffener Attachment → Baking→ Silkscreen → E-test → Punching/Laser Cutting

→ FQC → Packaging

Email: sales4@xdpcba.com; sales@xdpcba.com;

Quote Now

Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours

First Name
Last Name
Phone Number
E-mail Address *
Image Upload Drag the file into this area, or click Upload. (Supports compressed files, Word, Excel
and other file formats)
You Message Descriptions
By submitting this form, you consent to the storage of your data and your interests in order to answer your enquiry. Further information on data processing, your rights and revocation can be found in our privacy policy.

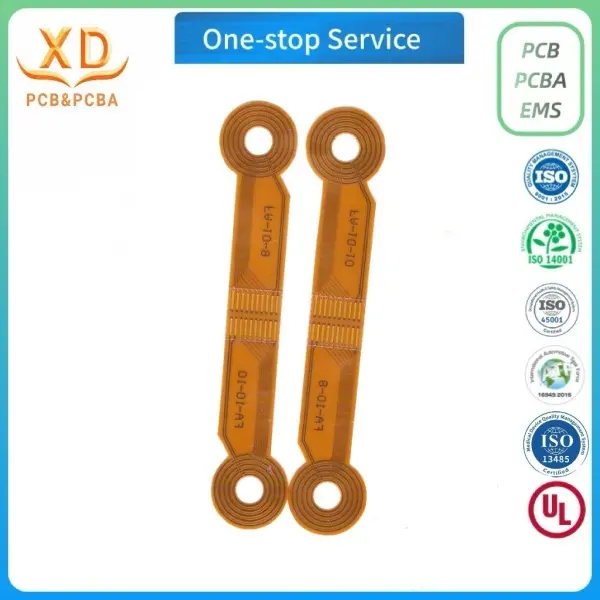

flexible pcbs 4-Layer High-Heat Ceramic FPC flex circuits for Aerospace fpc board
