Home > Products > FPC > Flexible PCBs > Medical Electrode FPC Hydrophobic 400 Ohm Carbon Oil Board flexible printed circuit board pcb board fabrication

Medical Electrode FPC Hydrophobic 400 Ohm Carbon Oil Board flexible printed circuit board pcb board fabrication

  • Place of origin: China
  • Material: FPC
  • Board thickness: 0.05mm- 0.50mm
  • Offer:
  • Range of copper thickness: 1/3 oz - 2 oz
Quote Now

Detail Specification

Item

Specifictions

Item

Specifictions

Regular Base Materials

Kapton,Polyimide(PI),Polyester(PET),PC

Outline Fabrication

Die cut,laser cut,CNC routing,V-scoring

Layer Count

FPC:1-6 Layers;Rigid Flex:2-10 Layers

Min.Line Width/Spacing

0.04mm/0.04mm

Regular Base Material Thickness

FPC:12.5μm-50μm;Rigid:0.1mm-3.2mm

Blind or Buried Vias

Yes

Copper Thickness

1/3oz-6oz

Impedance Control

Yes

Surface Finish

Electroplate Ni/Au(Flash gold/Soft gold/Hard gold),ENIG,Immersion Tin,plated sliver,immersion silver,OSP,HASL

Testing

Electrical Test

Regular Thickness

Coverlay:27-50μm;Adhesive:12-25μm

Certification

ISO9001 / UL /ISO14001/IATF16949/ RoHS


Application Scenarios

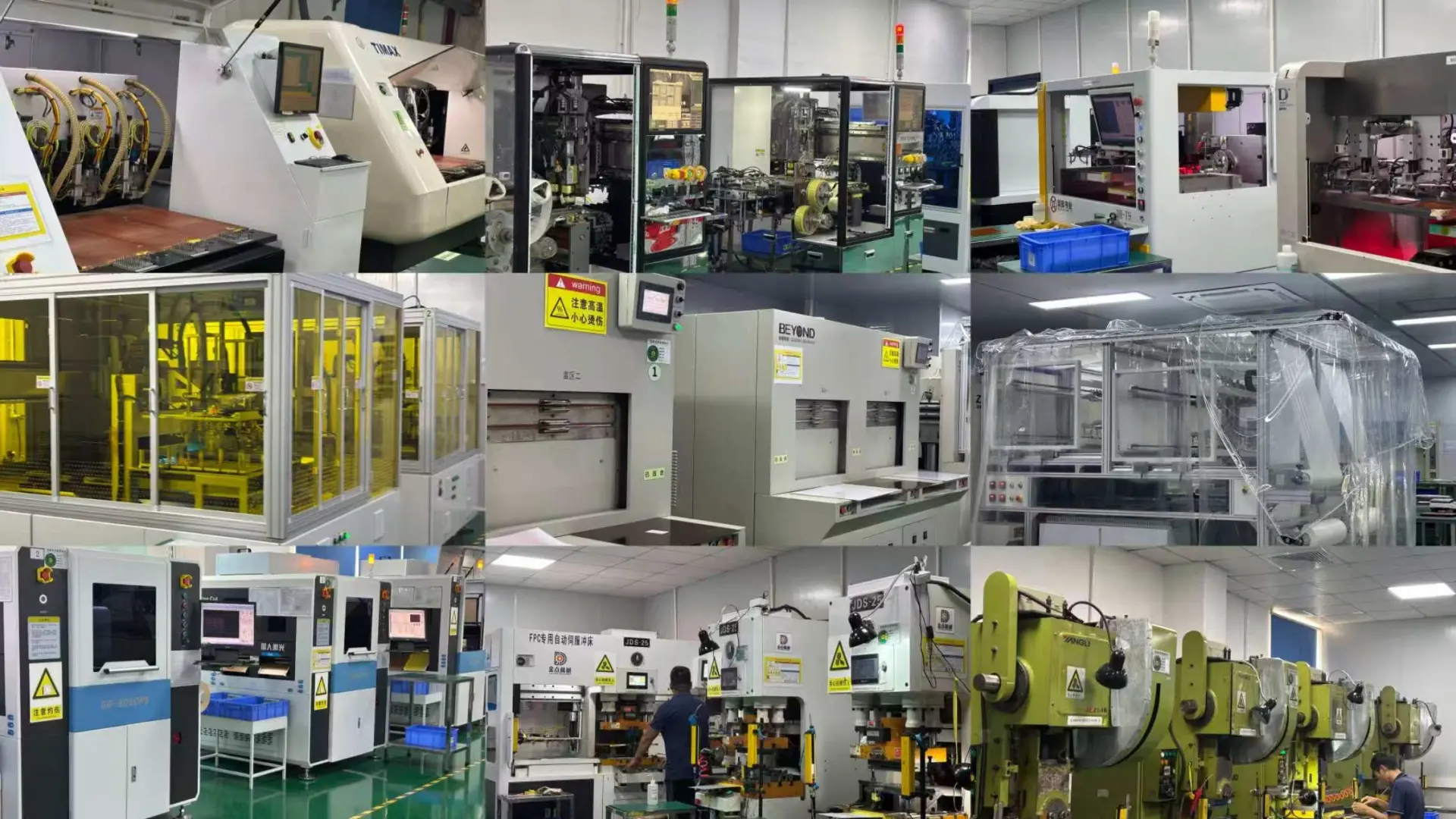

FPC Production Line

Standard FPC Production Flow:

Cutting→ Drilling→ PTH → Copper Plating → Pre-treatment → Dry Film Lamination → Exposure→ Developing→ Etching→

Stripping → Surface Treatment→ Coverlay Lamination → Stiffener Attachment → Baking→ Silkscreen  → E-test  →

Punching/Laser Cutting → FQC → Packaging
