High Precision Metering PCB | Smart Energy Meter / Energy Meter PCB Board

Quote Now

Process Specification

Substrate Material: FR4 TG130 / TG150, standard board thickness 1.6mm

Copper Thickness: 1oz / 2oz optional, stable conductivity and heavy current resistance

Surface Treatment: ENIG, Immersion Silver, HASL; green solder mask + white silkscreen

PCB Layers: 2-layer / 4-layer optional, strong and weak electricity isolation design

Industry Standard: Compliant with IPC-A-600, RoHS, IEC62052

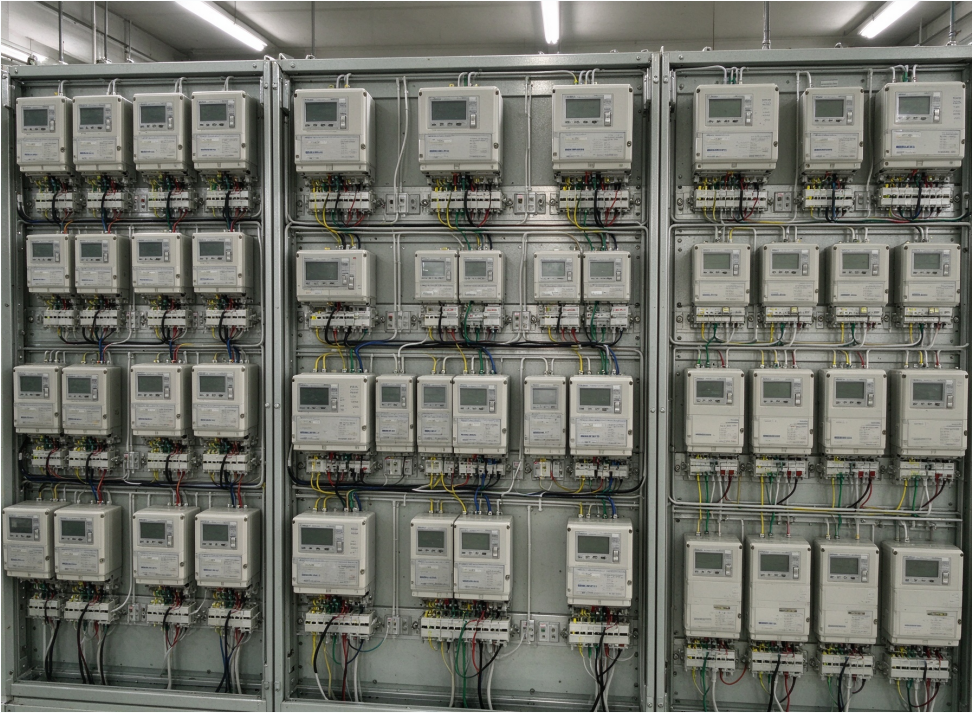

Our high-precision metering PCB boards are widely applicable to various types of

smart power metering equipment, including single-phase smart energy meters,

three-phase industrial energy meters, DIN rail-mounted energy meters, prepaid electricity meters

and IoT remote transmission smart meters.

They are perfectly suitable for residential household power metering,

factory industrial power monitoring, commercial building energy statistics

and power system energy management scenarios, providing stable

and accurate circuit support for meter equipment.

We have a professional standardized PCB production workshop

dedicated to the manufacturing of high-precision energy meter circuit boards.

The workshop is equipped with advanced PCB cutting, drilling, electroplating,

etching, solder mask printing and testing equipment.

From substrate cutting, circuit patterning, hole processing to surface finishing and final quality inspection,

every production link implements standardized management.

Strict electrical performance testing and insulation safety detection are carried out for each batch

of energy meter PCB to ensure stable product quality, high precision

and compliance with power industry application standards,

supporting large-scale customized production of meter PCB.
