Printer PCBA Process
1. PCB Type: Rigid FR4 (standard) / Rigid-Flex for movable printhead interconnect
2. Minimum Trace Width/Spacing: 0.1mm / 0.1mm (4 mil)
SoC with integrated motor drivers
3. Minimum Component Package: 0402 (passives) and QFN for ICs
4. Inspection: Automated optical inspection (AOI) for paste printing, X-ray for BGA/QFN void detection, and in-circuit testing (ICT) for functional verification
5. Environmental Adaptability: Conformal acrylic coating for moisture/dust resistance, plus anti-static ESD protection during assembly
Detail specification
As a professional OEM manufacturer of printer PCBA, we provide turnkey board solutions for thermal, inkjet, and laser printing systems. Our design integrates precision motor drivers, printhead control circuits, and multiple connectivity options (USB, Ethernet, Wi-Fi). Optimized for office and POS applications, our PCBA achieves standby current <50µA and supports dynamic power regulation, ensuring reliable high‑speed printing up to 300mm/s with 1200 DPI resolution and robust ESD protection.
Printer Application Scenarios
1. Black & White Laser Printer
A reliable office and school printer for fast, high-volume black-and-white document printing.
2. Home Inkjet All-in-One
A compact home printer ideal for student homework, occasional color prints and photo printing.
3. Photo Printer
A dedicated photo printer that produces vivid family photos and clear ID photos.
4. Thermal Printer
A fast printer used for receipts, shipping labels and food delivery orders.
5. Large Office MFP
A floor-standing multifunction printer built for enterprise copying, printing and scanning.

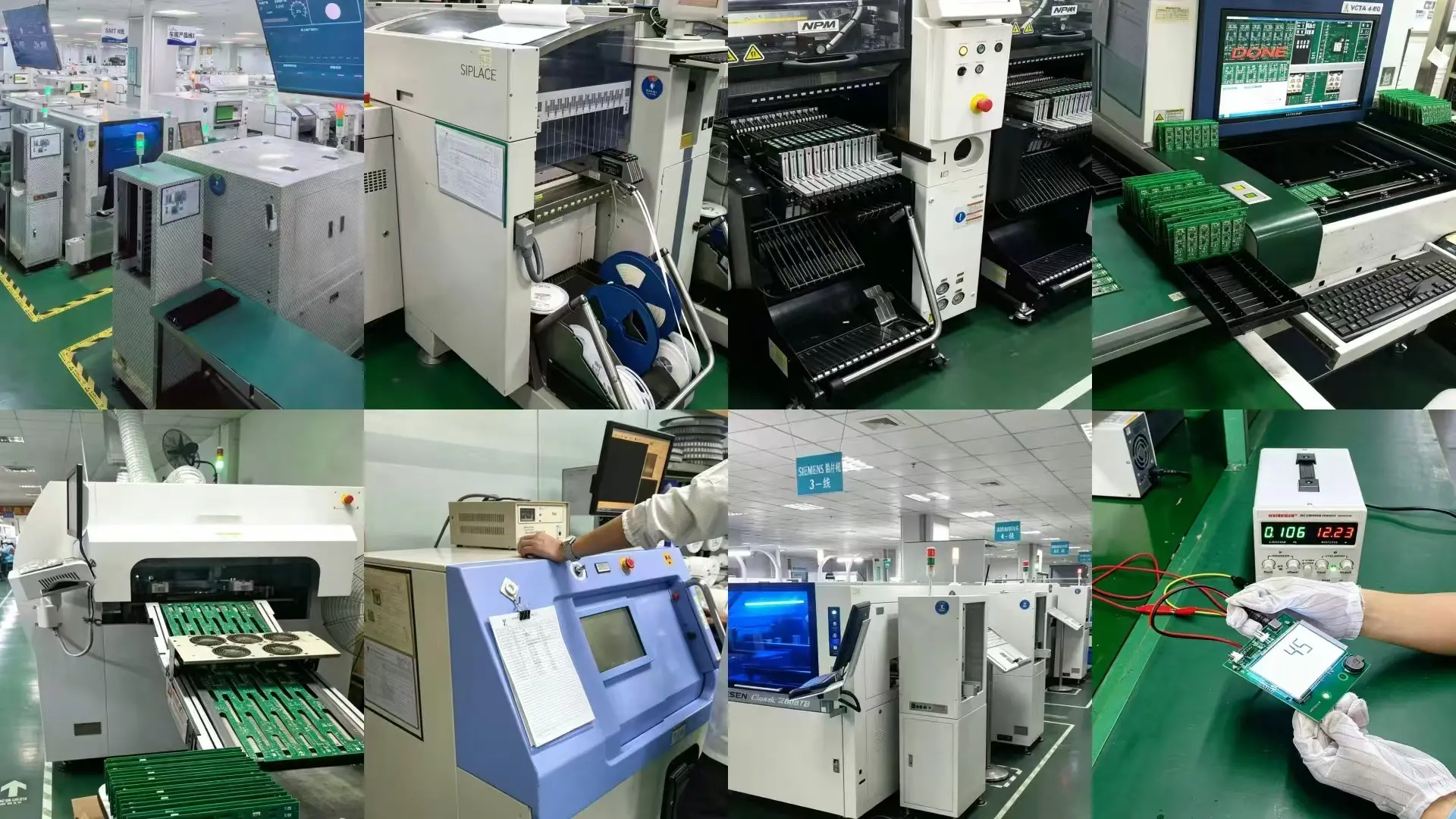

Printer PCBA Production Line
A corner of our PCBA factory
Our Business Model
Professional OEM Manufacturing Services for Printers
We deliver professional OEM manufacturing services for diverse printers, covering hardware adaptation, firmware tuning, custom branding and full-cycle mass production. Supported by in-house R&D and standardized QC systems, we strictly follow your technical specifications and brand requirements to produce reliable printer products. We offer flexible order scales, efficient sample iteration and stable lead time management. Serving global brand partners, we help you cut R&D investment, accelerate product launch and maintain consistent product quality for competitive market advantages.
