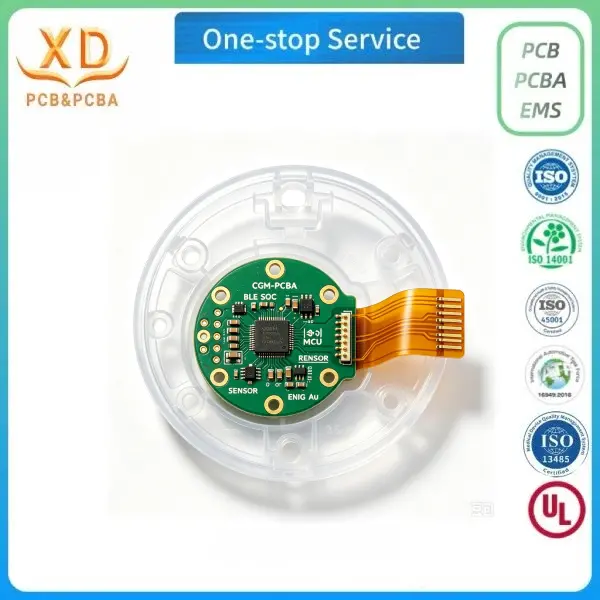

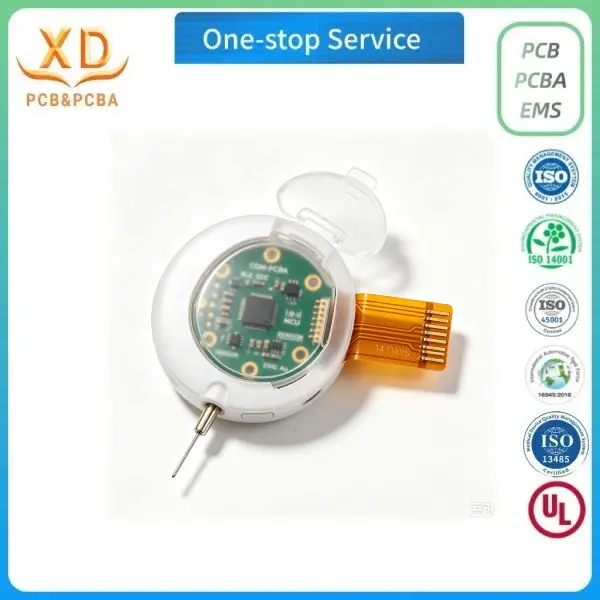

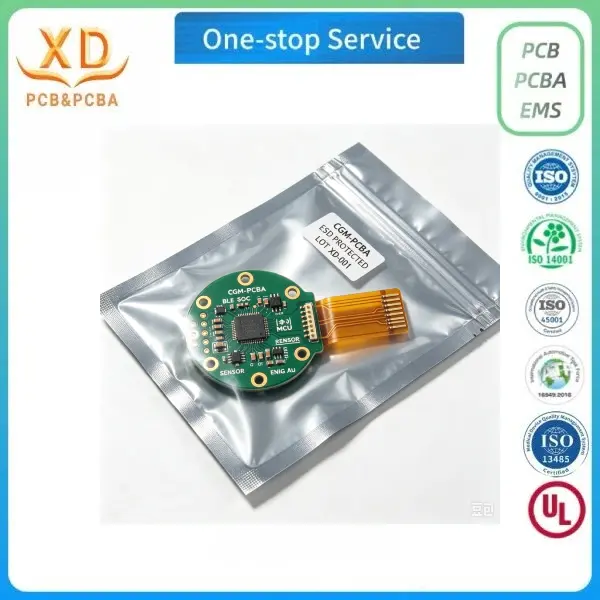

CGM PCBA Assembly – Continuous Glucose Monitor Medical PCBA Manufacturer
- Place of origin: China
- Material: FR4 + Polyimide
- Board thickness: Rigid: 0.8 – 1.2mm / Flex: 0.1 – 0.2mm
- Offer: Leave your email to receive a discount coupon – we'll send it to you right away.
- Range of copper thickness: Outer: 1oz (35μm) / Inner: 0.5 – 1oz (17 – 35μm) / Flex: 0.5oz (18μm)
Product Details
1. PCBA Process Capabilities

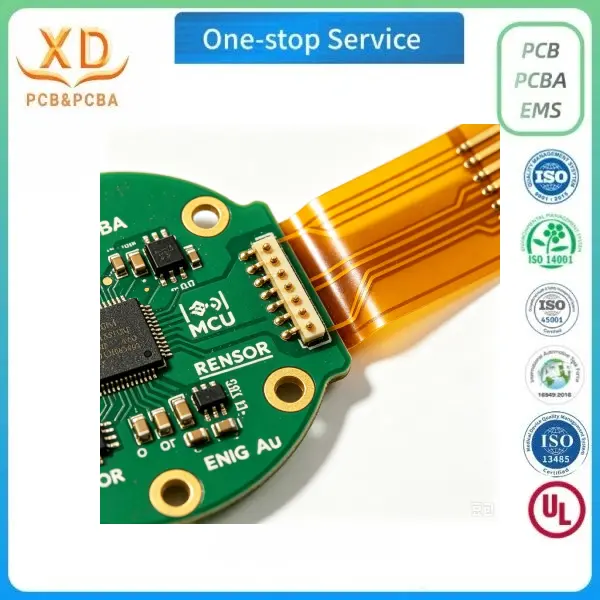

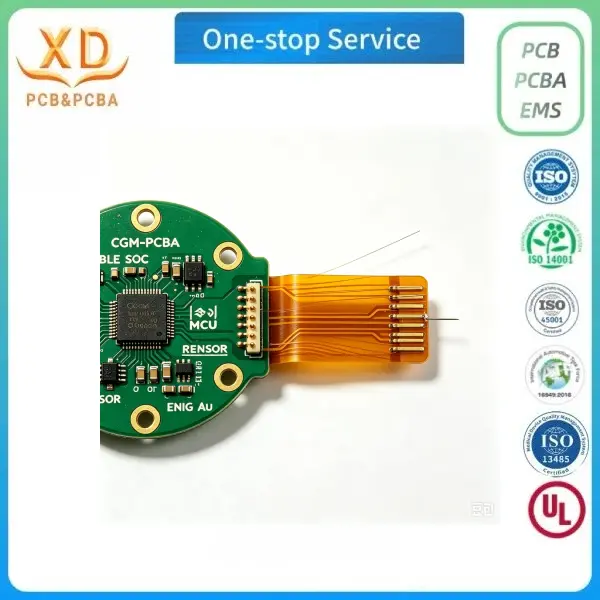

l Board Type: Rigid-flex PCBA – SMT assembly on rigid-flex PCB
l SMT Component Range: Supports 01005, 0201, BGA (0.4mm pitch), QFN, LGA
l Assembly Technologies: Fine pitch SMT, chip-on-board (COB) assembly, flip chip and wire-bonding for ultra-compact mixed signal electronics
l Surface Finish: ENIG (gold plating) for reliable soldering and biocompatibility
l Inspection: 100% AOI + X-ray for BGA void inspection + functional testing
l Protective Coating: Conformal coating / Parylene nano coating for moisture and sweat resistance
l Testing: Custom functional test fixtures for glucose signal simulation and Bluetooth communication check
l Standards Compliance: IPC-A-610 Class 2/3, RoHS, REACH

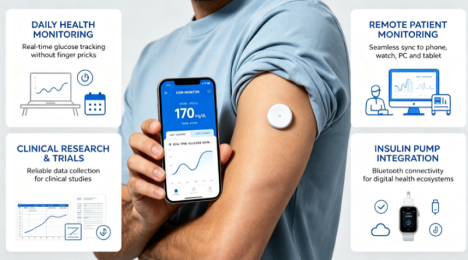

2. Application Scenarios
Function – Glucose Signal Acquisition & Wireless Transmission
The CGM PCBA integrates the analog front-end for glucose sensor interface, a microcontroller running sensor algorithms, and a Bluetooth Low Energy (BLE) radio module for smartphone connectivity — enabling seamless data sync to phones, watches, PCs, and tablets.
Application 1 – Consumer Health & Wellness
CGM PCBA assemblies are widely used in consumer wearable devices for real-time glucose monitoring, providing users with daily health trend management without invasive finger pricks.
Application 2 – Remote Patient Monitoring (RPM)
Medical PCBA assemblies are deployed in RPM scenarios including rehabilitation facilities, elderly care communities, and post-operative follow-up centers — enabling continuous patient glucose tracking and dynamic health assessments.
Application 3 – Integration with Insulin Pumps
Advanced CGM PCBA assemblies integrate with insulin pumps for automated insulin delivery (closed-loop systems), supporting interoperability with digital health platforms.

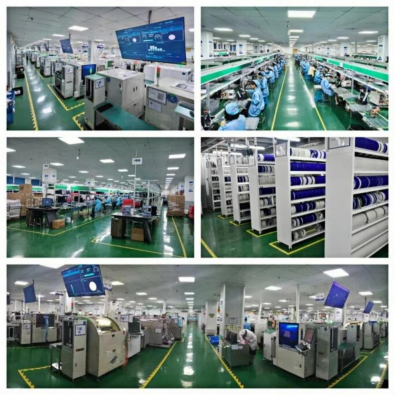

3. Production Line Photos
Our SMT lines support 01005 and BGA assembly with AOI, X-ray, and functional testing. Cleanroom available for medical-grade CGM PCBA manufacturing.
4. Contact Us
Contact us for any help regarding CGM PCBA manufacturing and turnkey solutions.
