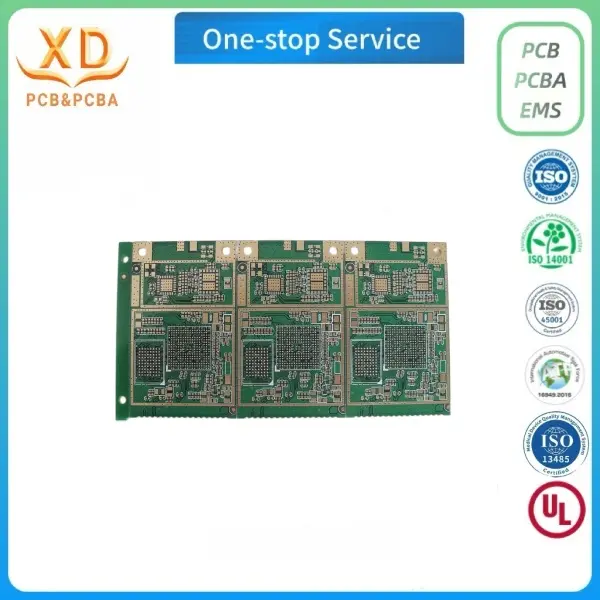

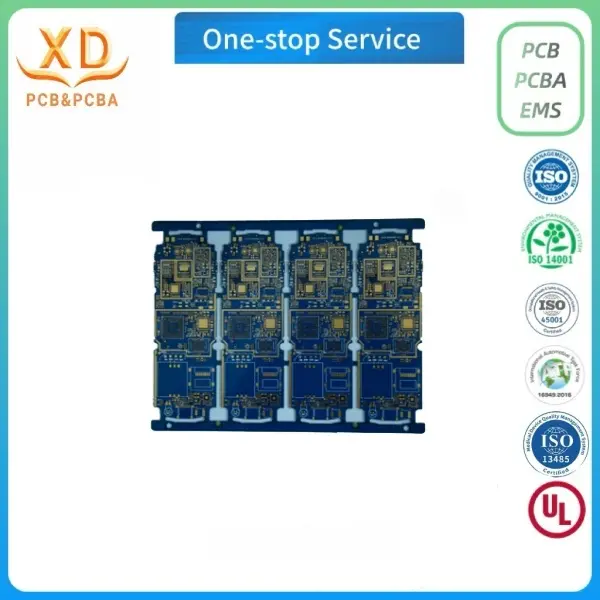

2-Layer HDI PCB High-Density Board for Electronic Shelf Labels
- Place of origin: China
- Material: FR4
- Board thickness: 0.2mm-0.6mm
- Offer:
- Range of copper thickness: 0.5-12oz
Product Detail Information
Product Detail Information
2-Layer HDI PCB | High-Density Board for Electronic Shelf Labels
Item | Specifictions | Item | Specifictions |
Base Material | FR-4 | Silkscreen | White/Black/Yellow |
Layer Count | 4-20 Layers | Min. Trace Width/Space | 3mil/3 mil（0.075mm） |
Board Thickness | 0.2mm-6mm | Min. Hole Size | 0.1mm(CNC Drilling) / 0.6mm (Punching) |
Copper Thickness | 0.5oz-12oz(18μm - 420μm) | Impedance Control | Available |
Surface Finish | HASL/ENIG(Gold)/OSP/Immersion Gold | Testing | 100% Electrical Test |
Solder Mask | Green/White/Red/Blue/Black | Certification | ISO9001 / UL /ISO14001/IATF16949/ RoHS |
Product Overview
Our 2-layer HDI PCBs are purpose-built for Electronic Shelf Labels (ESL) and smart retail display modules. Featuring advanced micro-via technology and an ultra-slim profile, these boards are optimized for low-power consumption and long-term battery efficiency. Designed to support E-ink displays and wireless communication (Zigbee/Bluetooth), our boards provide the high-density routing required for compact, energy-efficient retail hardware. We ensure superior signal integrity and surface flatness, making them the ideal choice for high-volume, cost-effective smart labeling systems.
Key Selling Points
•Ultra-Slim: Compact 2-layer HDI design for thin ESL enclosures.
•Low Power: Optimized routing for extended battery life.
•High Volume: Cost-effective OEM production for smart retail.
Engineering Support: DFM (Design for Manufacturing) check before production.
Testing: Flying Probe Test, Fixture Test, Impedance Control Test, Thermal Stress Test.
“ Instant PCB(1-38 layers)”--XD
XD is a professional PCB manufacturer providing high-quality printed circuit boards for global electronics industries.
We are capable of manufacturing a wide range of PCB types to meet different application requirements, including:FR-4 PCBs,ceramic PCBs,carbon oil PCBs,Aluminum PCBs,Flexible & Rigid-Flex PCBs.
We specialize in 2-layer HDI ESL PCB manufacturing, providing the perfect balance between ultra-thin design and cost-efficiency. By using Laser Direct Imaging (LDI) and high-speed laser drilling, we achieve the precise registration required for your advanced E-ink and wireless sensor designs.
This 2-layer structure is ideal for electronic shelf labels, smart tags, and IoT modules. We ensure 100% E-test and AOI inspection to guarantee that every board meets the highest industrial standards for signal stability and durable performance in retail environments.
We support HDI PCB prototypes, small-batch production, and mass production to meet different customer requirements, helping you accelerate your product's time-to-market.

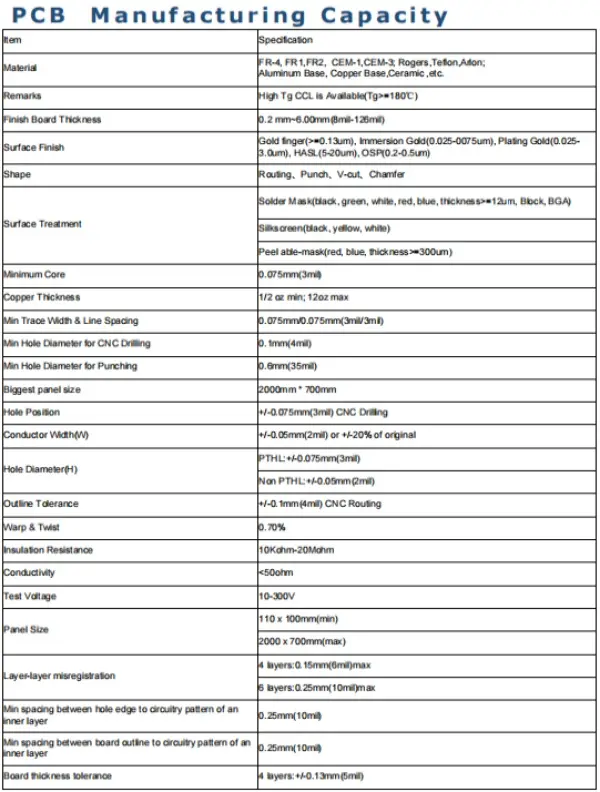

Our PCB manufacturing capability includes:
• Fine Line Technology: Min. Trace/Space down to 0.075mm / 0.075mm
• Blind & Buried Vias: Professional via-in-pad and resin filling processes
• High-End Materials: High-TG, Low-Loss, and Halogen-free laminates
• Surface Finishes: ENIG, ENEPIG, and OSP for superior soldering
• Complex Stack-ups: Multilayer HDI integration up to 20+ layers
• Rigorous Testing: AOI, Micro-sectioning, and Impedance Control

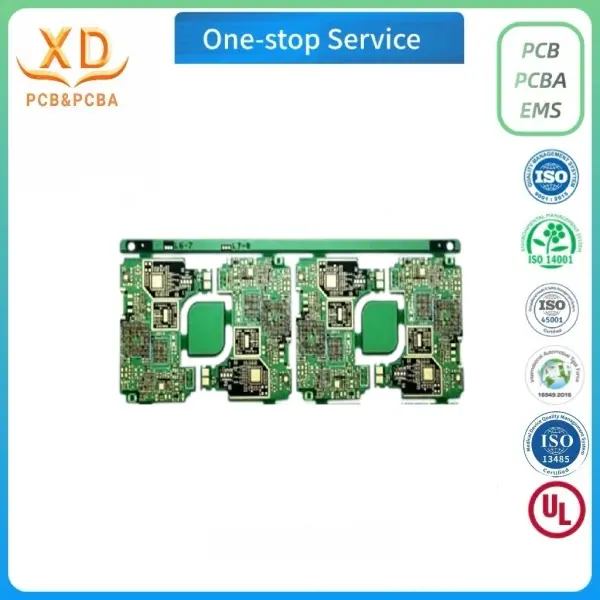

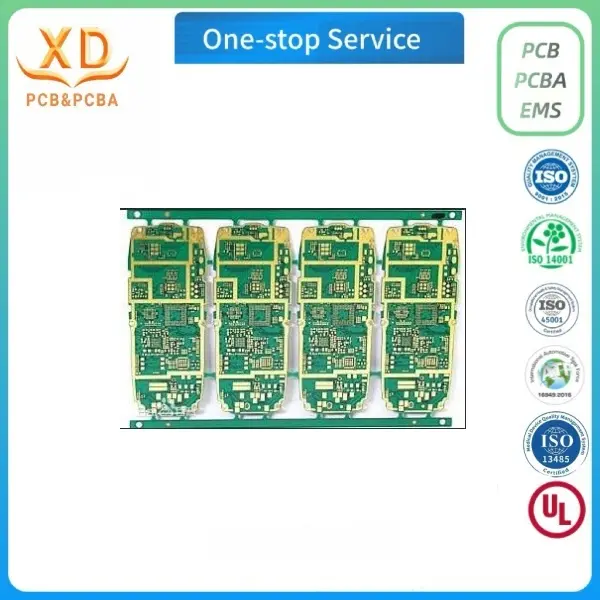

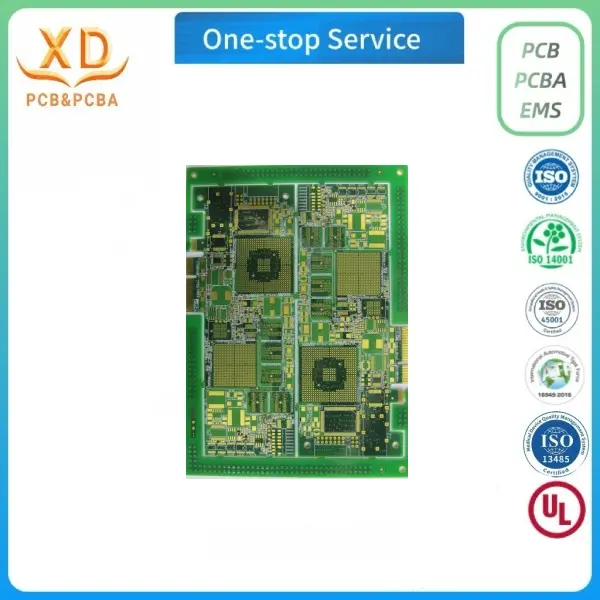

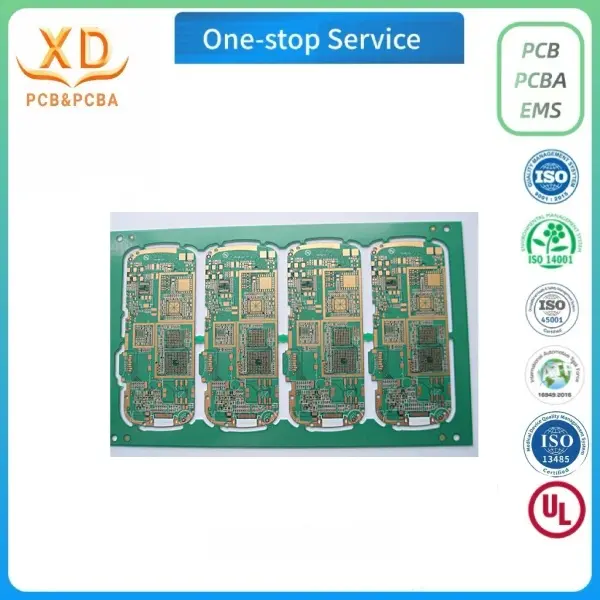

Attention: pictures are for reference only. The specific products are subject to the original factory model.
Standard Packaging: Inner Vacuum Packaging + Outer Carbon Box.
Delivery Partners: EMS,DHL,SF-express, FedEx, UPS or Sea/Air Freight for bulk orders.
Why Choose Us
•15years experience in PCB manufacturing.

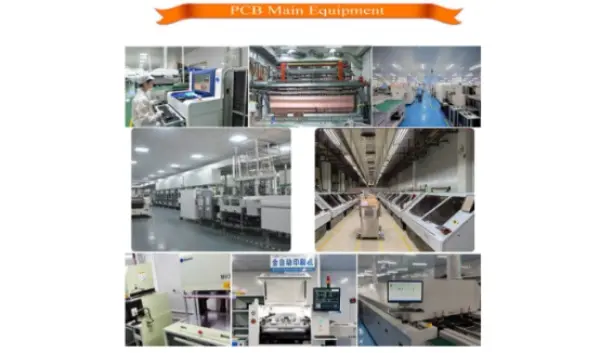

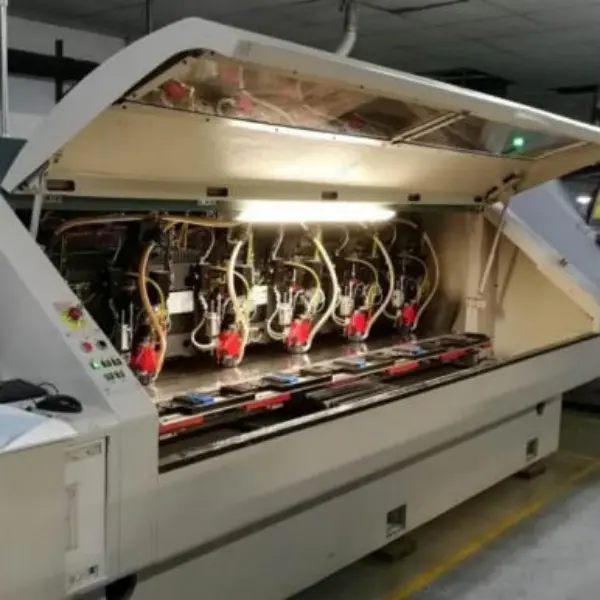

•Advanced Equipment: Equipped with high-speed CNC drilling machines and AOI testing lines.
•Professional engineering support
• Fast prototype delivery
• Global customers from Europe, USA and Asia
•Own Global Supply System.
•Fast and safe way by EMS/DHL/SF-express/Fedex,etc.
•New styles updating everyday and MOQ for all the styles;
1. What's your MOQ and what is XD's fastest delivery time?
A: Our MOQ is Minimum packaging quantity, please contact us for details. Sample to mass production all can be supported by XD.
2. Which payment terms does XD accept?
A:Advance T/T,Western Union,Paypal, L/C,Credit Card, Cheque,Money Gram and Others.
3.What files are required for PCB quotation?
A:Gerber files, PCB specifications and quantity.
4.How to test PCB boards?
A:AOI,Fly probe testing,Text fixture testing,FOC etc. For bare PCB.
Shipping Information
FOB Port Shenzhen | Lead Time 7-15 days |
Weight per Unit 1.0 Kilograms | Dimensions per Unit 7.2x3.2x0.06 Centimeters |
HTS Code 8517.79.90 00 | Units per Export Carton 36.0 |
Export Carton Dimensions L/W/H 58.0x26.0x36.0 Centimeters | Export Carton Weight 0.1 Kilograms |
Welcome to send us your PCB Gerber files for quotation.
Our engineering team will respond within 24 hours.
