HDI PCB Process Specification
Process Specification
1. Base Material: FR‑4
2. Layer: 4‑20 Layers
3. Board Thickness: 0.2mm‑6mm
4. Copper Thickness: 0.5oz‑12oz(18 μm ‑ 420 μm)
5. Surface Finish: HASL/ENIG (Gold)/ OSP/Immersion Gold
6. Solder Mask: Green/White/Red/ Blue/Black
7. Silkscreen: White/Black/Yellow
Min.
8. Trace Width/Space: 3mil/3 mil(0.075mm)
9. Min. Hole Size: 0.1mm (CNC Drilling) / 0.6mm (Punching)
10. Impedance Control: Available
11. Testing: 100% Electrical Test
Certification: ISO9001 / UL /ISO14001/IATF16949/ RoHS
HDI PCB Application scenarios

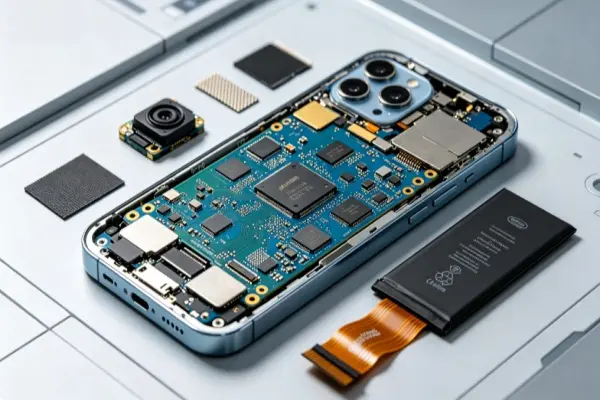

1.Smartphone Mainboard
HDI PCB adopts blind and buried vias for highdensity routing, supporting compact layout and high-speed signal
transmission for flagship smartphones.

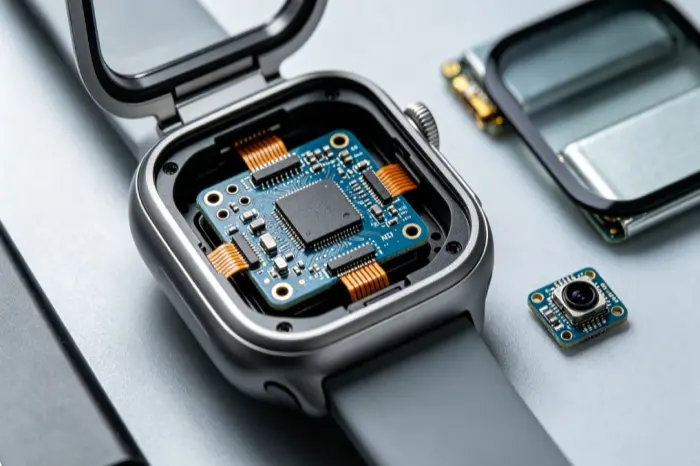

2.Smart Watch & Wearables
Ultra-fine HDI PCB minimizes board dimension, integrating sensors, Bluetooth and power management for miniaturized,
low-power wearable devices.

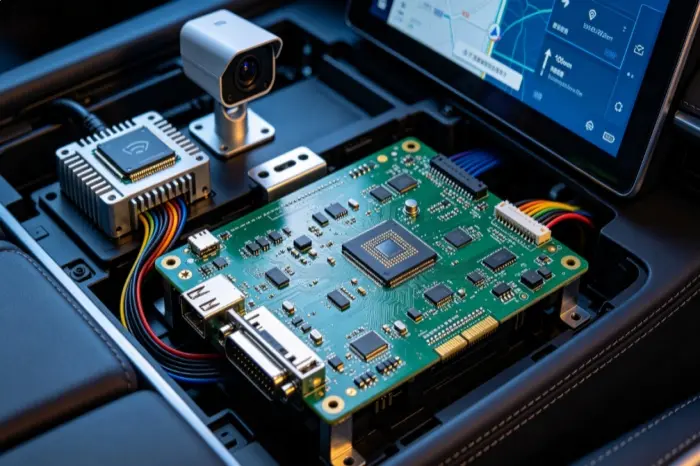

3.Automotive Electronics
Automotive-grade HDI PCB serves infotainment, instrument and radar modules, delivering high-density interconnection
with anti-vibration and wide-temperature stability.

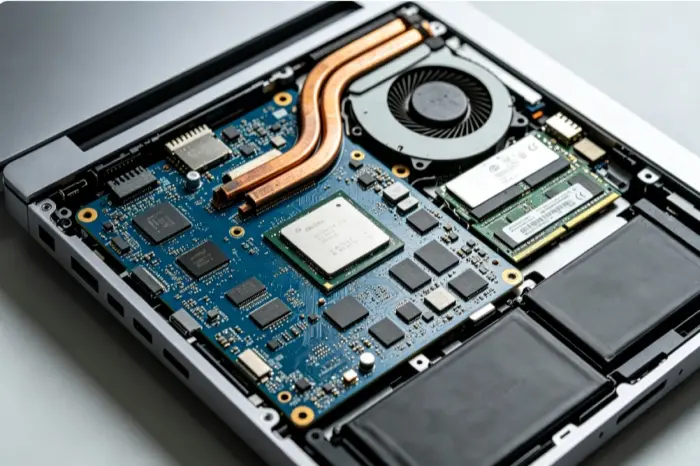

4.Laptop & Tablet Mainboard
Thin-type HDI PCB enables high-speed interconnection among CPU and memory, realizing component dense layout
for slim, high performance portable devices.

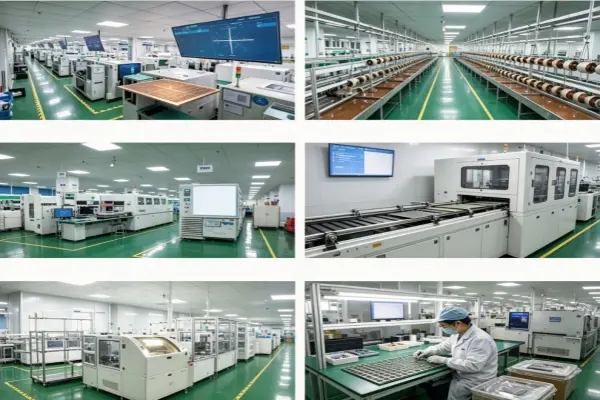

HDI PCB Production Line
