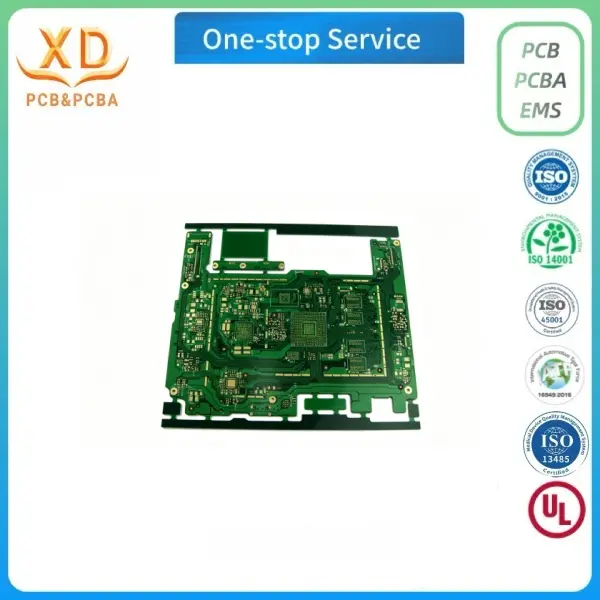

Military-Grade 6-Layer RF PCB High-Frequency Defense Solution

Place of origin: China
Material: FR-4,Rogers and Arlon
Board thickness: 0.2mm-6.0mm
Offer:
Range of copper thickness: 0.5oz-2.0oz

Quote Now

PCB Process

Item	Specifictions	Item	Specifictions
Base Material	FR-4,Rogers and Arlon	Silkscreen	White/Black/Yellow
Layer Count	1-38 Layers	Min. Trace Width/Space	3mil/3 mil（0.075mm）
Board Thickness	0.2mm-6mm	Min. Hole Size	0.1mm(CNC Drilling) / 0.6mm (Punching)
Copper Thickness	0.5oz-12oz(18μm - 420μm)	Impedance Control	Available
Surface Finish	HASL/ENIG(Gold)/OSP/Immersion Gold	Testing	Electrical Test
Solder Mask	Green/White/Red/Blue/Black	Certification	ISO9001 / UL /ISO14001/IATF16949/ RoHS

PCB Application Scenarios

PCB Production Line

Cutting→ Drilling→ PTH → Copper Plating → Pre-treatment → Dry Film Lamination → Exposure→ Developing

→ Etching→ Stripping →Surface Treatment→ Coverlay Lamination → Stiffener Attachment → Baking→ Silkscreen

→ E-test → Punching/Laser Cutting → Product → Packaging
