Material Options: Alumina (Al₂O₃ ≥96%) with white appearance for cost-effective solutions, or Aluminum Nitride (AlN ≥96%) with
gray appearance for ultra-high thermal conductivity requirements
l Thermal Conductivity: Al₂O₃ ≥20 W/(m·K) / AlN ≥170 W/(m·K) – ensuring efficient heat dissipation for high-power stage
lighting applications
l Flexural Strength: Al₂O₃ ≥350 MPa / AlN ≥450 MPa – providing mechanical robustness for large-size panel installation
and transportation
l Volume Resistivity: Al₂O₃ ≥10¹⁴ Ω·cm / AlN ≥10¹³ Ω·cm – guaranteeing excellent electrical insulation under high-voltage
operation
l Dielectric Performance: Dielectric constant of 8-10 at 1MHz with low dielectric loss (Al₂O₃ ≤3×10⁻⁴ / AlN ≤4.5×10⁻⁴) –
ensuring signal integrity in high-frequency switching circuits
l Water Absorption: 0% – preventing moisture-related failures in humid stage environments
l Copper Metallization: DPC (Direct Plated Copper) process with customizable copper thickness for high-current carrying capacity
l Surface Finish: ENIG (Immersion Gold) for excellent solderability and oxidation resistance in long-term high-temperature operation
l Thermal Expansion Matching: Closely matched CTE (Coefficient of Thermal Expansion) with LED chips and power
components, minimizing thermal stress and solder joint fatigue
l High-Temperature Stability: Sustained performance at operating temperatures up to 800°C for Al₂O₃ and even higher for AlN,
suitable for high-intensity discharge (HID) lighting and moving head fixtures
1. High-Power Stage Lighting – Ceramic PCBs serve as the ideal substrate for high-power stage LED fixtures, moving
head lights, and follow spots, providing superior thermal management to maintain brightness stability and extend LED
lifespan during extended performances.
2. Automotive Electronics – Aluminum nitride (AlN) ceramic PCBs are ideal for electric vehicle power modules, IGBT heat
sinks, and transmission system control boards, offering excellent thermal conductivity and high-voltage insulation for
demanding automotive environments.
3. Aerospace & Defense – With high flexural strength (≥450 MPa) and extreme temperature resistance, ceramic PCBs are
used in satellite communication systems, radar modules, and avionics equipment where reliability is critical.
4. Industrial Power Electronics – Ceramic heater PCBs and high-power rigid ceramic boards are applied in industrial heating
equipment, power inverters, and welding machines, ensuring stable performance under high-temperature operation.

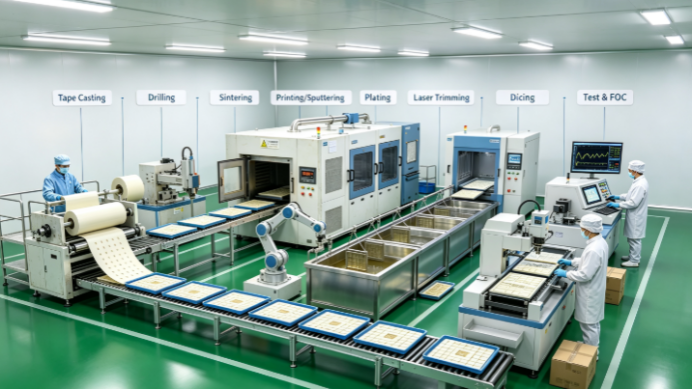

Our ceramic PCB manufacturing facility is equipped with advanced production lines including:
l DPC (Direct Plated Copper) process for high-precision metallization
l Thick-film printing and firing furnaces
l Laser cutting and precision drilling equipment
l Automatic optical inspection (AOI) and X-ray inspection systems
l ENIG (Electroless Nickel Immersion Gold) surface treatment line
Quality is ensured through 100% electrical testing, thermal cycling tests, and solderability tests in compliance with
IPC-TM-650 and GB/T standards.
Contact us for any help regarding Ceramic PCB fabrication and customization.
Website: www.xdpcba.com
Email: sales@xdpcba.com; bluesky@xdpcba.com
Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours
High-performance 96% Alumina Ceramic PCB with excellent thermal conductivity and electrical insulation. Customized ceramic circuit boards for LED, automotive, power electronics and communication applications.
Quote Now
We are an OEM manufacturer of ceramic PCB prototypes. Our double-sided conductive metallization ceramic boards feature Al₂O₃ (≥96%) and AlN (≥96%) substrates, 0.635mm thickness, 1OZ copper, and ENIG surface finish. With ≥20 W/mK thermal conductivity (AlN ≥170 W/mK), impedance control, blind/buried vias, and 0.04mm line width/spacing, they are ideal for RF transmitters and high-reliability applications. Custom services include prototype PCBs, semi-hole metallization, and multilayer designs.
Quote Now
We are an OEM manufacturer of alumina ceramic PCBs. Our 1.0mm alumina circuit boards feature 70UM copper thickness, ≥20 W/mK thermal conductivity, double-sided conductive metallization, and ENIG surface finish. Designed for medical device control cards and industrial applications, they support 0.04mm line width/spacing, impedance control, and blind/buried vias. Custom services include AlN, SiC, and ZrO₂ substrates. Available in multiple colors (white, black, gold, green, etc.) with fast 5-15 day
Quote Now
We are an OEM manufacturer of alumina ceramic PCBs. Our ceramic substrates feature 24 W/mK thermal conductivity, excellent electrical insulation, and 800°C heat resistance. Available in 96% and 99.6% purity grades, they support thick-film and thin-film processes. Ideal for high-power, RF/microwave, and extreme environments, they outperform FR4 in stability. Custom services include prototype boards, double-sided metallization, and multilayer ceramic boards.
