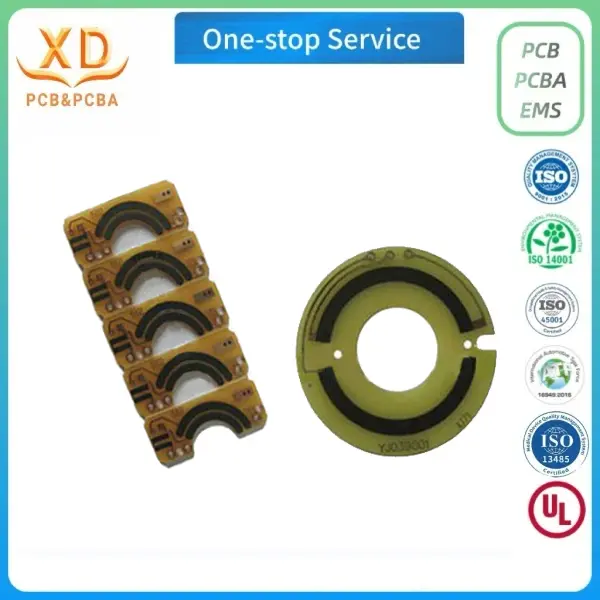

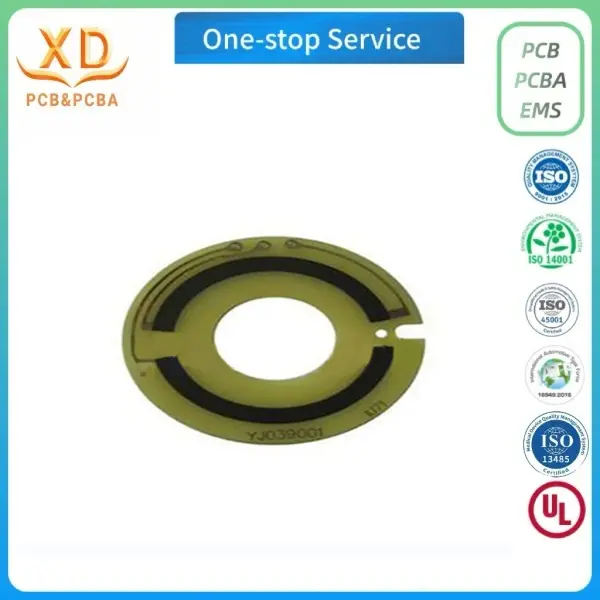

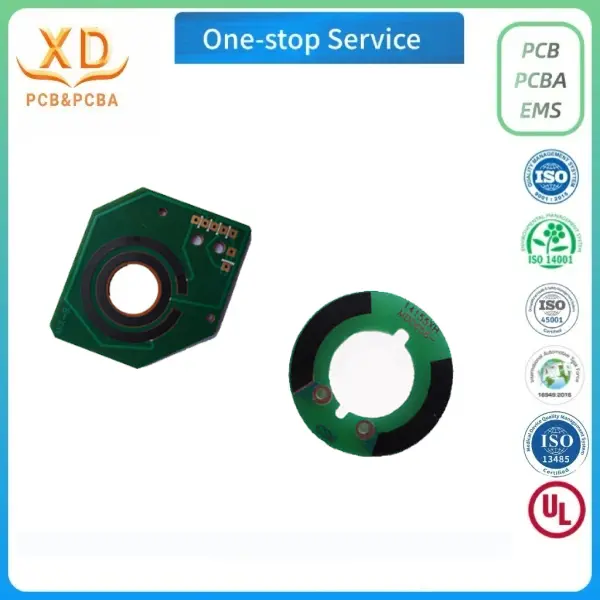

Carbon Ink Printed PCB Board, OEM Carbon PCB for Sensor Contact

  • Place of origin: China
  • Material: Fr4
  • Board thickness: 1.6mm
  • Offer:
  • Range of copper thickness: 1oz
Quote Now

Carbon PCB Process Specification

Carbon PCB Manufacturing & Technical Specifications

  1. Base material cutting: FR-4 CCL cut & deburred
  2. Copper circuit: Exposure, develop, etch
  3. Solder mask print & cure, reserve carbon ink zone
  4. Screen print conductive carbon ink (core process)
  5. Segmented baking for stable resistance & adhesion
  6. Optional surface finish: ENIG, HASL, OSP
  7. Drilling & CNC routing for custom shapes
  8. Electrical test, resistance & durability sampling
  9. FQC visual inspection

  10. Vacuum packing

    ✅ Custom available: Resistance value, tolerance, linearity; for gamepad, automotive, speed control;


Carbon PCB Application scenarios

Carbon oil-printed PCB is a core contact resistive sensing component.

1. Game controllers: PS2, XBOX game controller joystick position detection

2. Automotive electronics: Windscreen wiper, car light, air conditioner rotary control sensors

3. Industrial electronics: Motor speed control modules, rotary potentiometers, angle position sensors

4. Home appliances: Fan, blender, oven rotary control knobs.

The arc carbon traces capture rotating movement and output an accurate resistance signal

for position & speed feedback.





Carbon PCB Production Line

Carbon PCB full production workflow:

  1. FR4 raw material incoming quality inspection
  2. Drilling, routing and copper circuit etching of base PCB
  3. Surface cleaning & dust removal
  4. Screen printing conductive carbon oil on designated circuit area
  5. High-temperature oven curing for carbon ink solidification
  6. Electrical testing: resistance value, linearity & heat resistance inspection
  7. Protective coating application

  8. AOI visual inspection and final functional test We have full in-house production line,

  9. strictly control carbon ink thickness and uniformity,

  10. support custom carbon track pattern, prototype trial and mass volume manufacturing.
