Custom Carbon Printing PCB Board | Carbon Oil Resistive Sensor PCB OEM

Place of origin: China
Material: Fr4
Board thickness: 1.6mm
Offer:
Range of copper thickness: 1oz

Quote Now

Carbon PCB Process Specification

Carbon PCB Manufacturing & Technical Specifications

Process principle: Screen printing conductive carbon oil onto etched PCB substrate,
high-temperature curing to form resistive carbon tracks for contact position sensing.
Game handle carbon PCB (PS2, XBOX etc.)
- Total resistance range: 1KΩ - 1MΩ
- Resistance tolerance: ±10%
- Heat resistance: 260℃±5℃, 5 sec, △TR ≤ ±50%
- Durability: ≥1 million cycles
Automobile component carbon PCB (windscreen wiper, light, air-condition control)
- Resistance taper: 1KΩ -1MΩ
- Resistance tolerance: ±1%
- Linearity tolerance: ±1%
- TCR: ±800PPM within -40℃ ~ +85℃
- Durability: ≥1 million cycles
Speed control electrical component carbon PCB
- Resistance taper: 1Ω -3MΩ
- Resistance tolerance: ±1%
- Linearity tolerance: ±1%
- Durability: ≥1 million cycles
Customization support: Custom shape, arc carbon track layout, resistance value
and tolerance to match your sensing requirements.

Carbon PCB Application scenarios

Carbon oil-printed PCB is a core contact resistive sensing component.

1. Game controllers: PS2, XBOX game controller joystick position detection

2. Automotive electronics: Windscreen wiper, car light, air conditioner rotary control sensors

3. Industrial electronics: Motor speed control modules, rotary potentiometers, angle position sensors

4. Home appliances: Fan, blender, oven rotary control knobs.

The arc carbon traces capture rotating movement and output an accurate resistance signal

for position & speed feedback.

Carbon PCB Production Line

Carbon PCB full production workflow:

FR4 raw material incoming quality inspection
Drilling, routing and copper circuit etching of base PCB
Surface cleaning & dust removal
Screen printing conductive carbon oil on designated circuit area
High-temperature oven curing for carbon ink solidification
Electrical testing: resistance value, linearity & heat resistance inspection
Protective coating application
AOI visual inspection and final functional test We have full in-house production line,
strictly control carbon ink thickness and uniformity,
support custom carbon track pattern, prototype trial and mass volume manufacturing.

Contact Us

Website: www.xdpcba.com

Email: bluesky@xdpcba.com

Sales10@xdpcba.com

Quote Now

Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours

First Name
Last Name
Phone Number
E-mail Address *
Image Upload Drag the file into this area, or click Upload. (Supports compressed files, Word, Excel
and other file formats)
You Message Descriptions
By submitting this form, you consent to the storage of your data and your interests in order to answer your enquiry. Further information on data processing, your rights and revocation can be found in our privacy policy.

Related Products

Custom Carbon Printing PCB Board | Carbon Oil Resistive Sensor PCB OEM

Our carbon oil PCB (carbon printing PCB) prints conductive carbon ink on FR4 substrate to form arc resistive traces, converting mechanical rotation into analog electrical signals. Custom outline, carbon pattern and resistance from 1KΩ to 3MΩ. Durability reaches minimum 1 million cycles. We supply carbon PCB for game controller handles, automotive wiper/lighting/AC sensors and speed control electrical components. Strict electrical testing ensures stable performance. Sample and bulk orders are acc
Quote Now

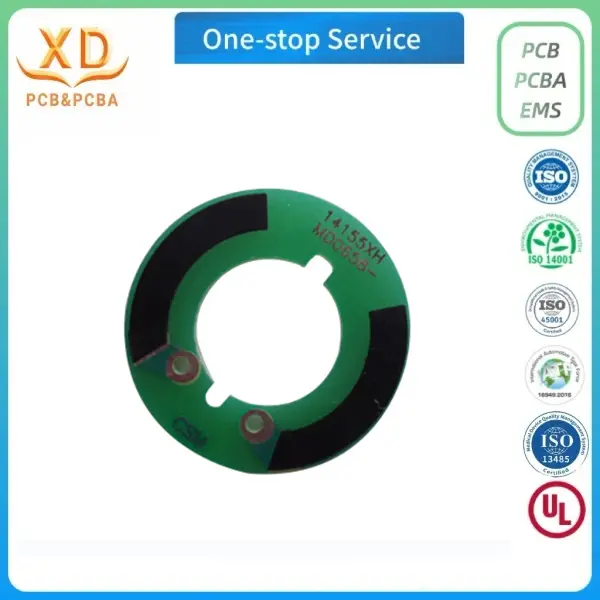

Carbon Ink Printed PCB Board, OEM Carbon PCB for Sensor Contact
