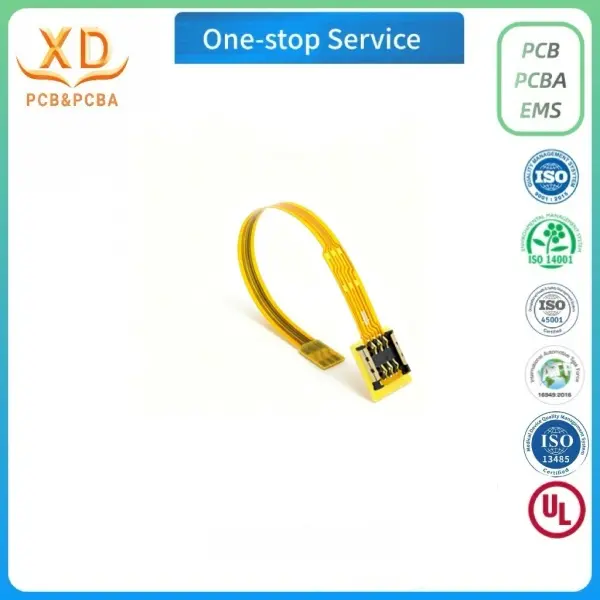

Smart ring with an ultra-thin six-layer rigid flex PCB polyimide pcb without NFC wireless charging flex pcb

  • Place of origin: China
  • Material: FR-4 PI
  • Board thickness: 0.3mm-0.8mm
  • Offer:
  • Range of copper thickness: <0.5oz
Quote Now

PCB Process

1.Product Hole: Minimum metallized hole diameter: (0.1±0.05); Minimum non-metallized hole diameter: None

2.Product Circuitry: Minimum circuit width: 0.11±0.02mm; Minimum circuit spacing: 0.055±0.02mm

3.Product Solder Mask & Characters: Solder mask opening 0.7±0.075mm; Character silkscreen line width: 0.125mm

4.Finished Product Dimensions: 62.6*7.3mm

5.Surface Finish: Immersion Gold 1-2U

6.Product highlights: Due to the limited space in smart rings, the rigid-flex PCB must be ultra-thin, and the connection

points between the rigid PCB areas and the flexible PCB areas are extremely narrow, posing significant manufacturing

challenges. This product is primarily used in Bluetooth hard-network smart rings, health monitoring smart rings, and

fitness tracking smart rings.

PCB Application Scenarios


PCB Production Line

Contact Us

Contact us for any help regarding Rigid-Flex PCB for smart ring:
