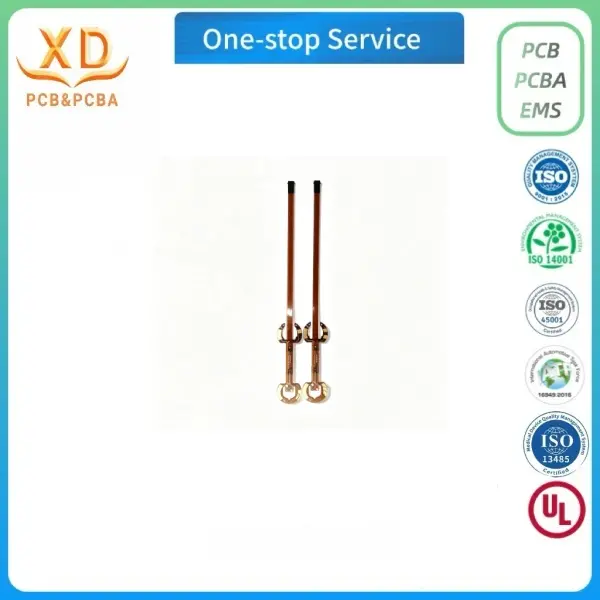

The smart ring rigid flex circuit boards four-layer rigid-flex board printed circuit boards pcb fpcb

  • Place of origin: China
  • Material: FR-4,PI,RA Copper
  • Board thickness: 0.3mm-0.8mm
  • Offer:
  • Range of copper thickness: 0.3oz-2.0oz
Quote Now

PCB Process

1.Materials: Ultra-thin FR4 for rigid sections, PI (polyimide) for flexible sections, RA Copper for transition area.

2.Layer Count: 2-8layer.

3.Total Thickness: 0.3mm–0.8mm

4.Rigid Area Thickness:down to 0.39mm

5.Flex Area Thickness: down to 0.22mm

6.Trace Width / Spacing: down to 0.06mm

7.Drilling Hole Diameter: down to 0.1mm

8.Surface Finish: typically ENIG .

9.Inspection: Xray, SEM


PCB Application Scenarios

PCB Production Line


Contact Us

Contact us for any help regarding Rigid-Flex PCB for smart ring:

Website: www.xdpcba.com

Email: sales@xdpcba.com sales4@xdpcba.com

Quote Now

Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours

  • By submitting this form, you consent to the storage of your data and your interests in order to answer your enquiry. Further information on data processing, your rights and revocation can be found in our privacy policy.

  • Enter verification code
