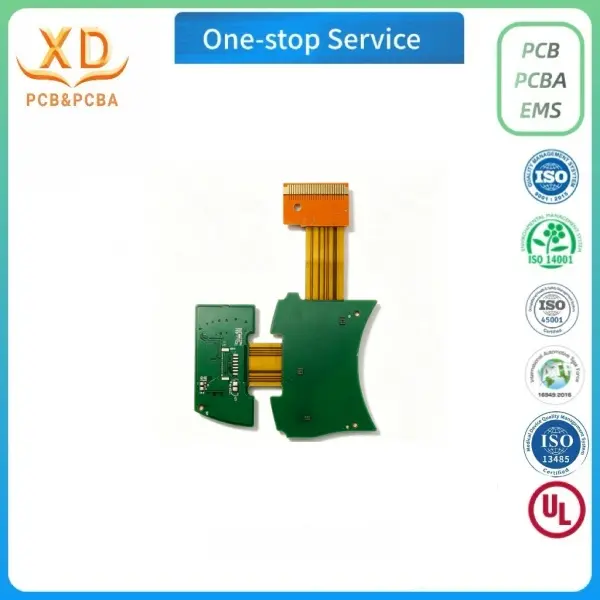

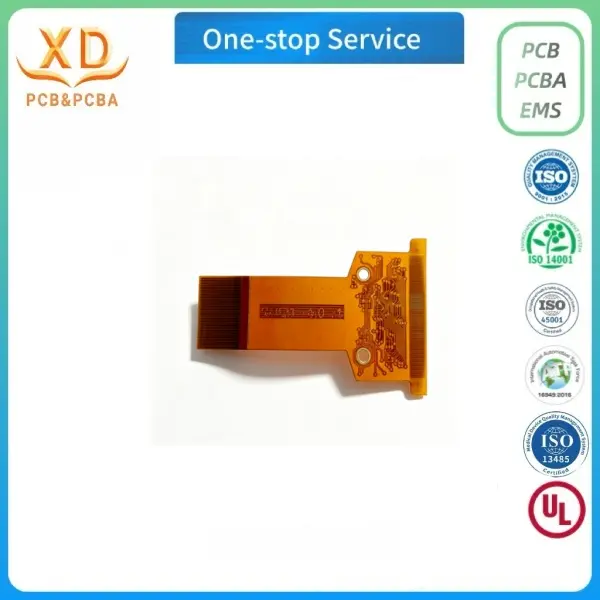

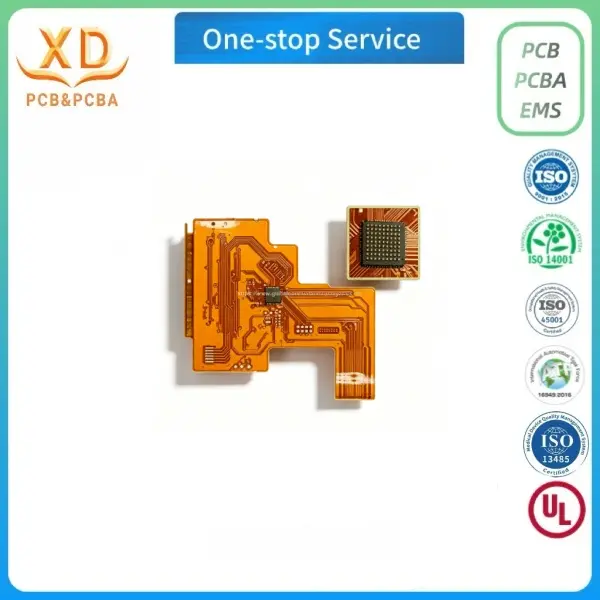

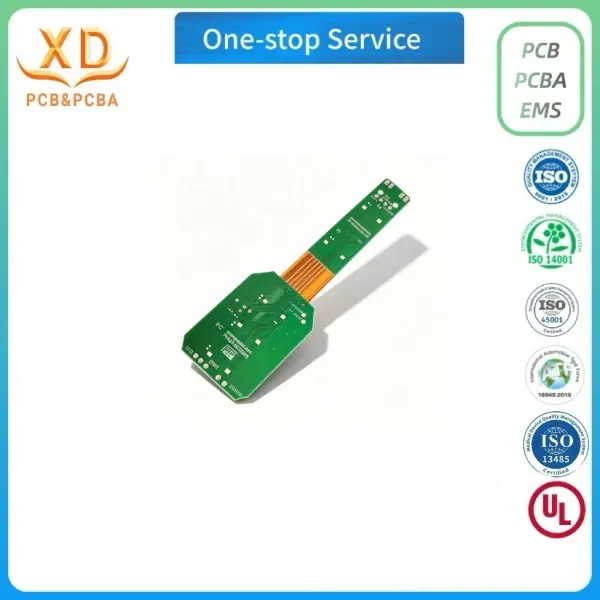

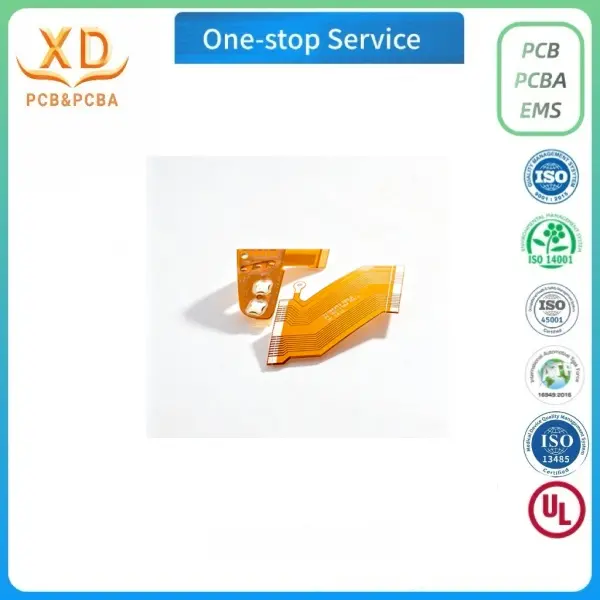

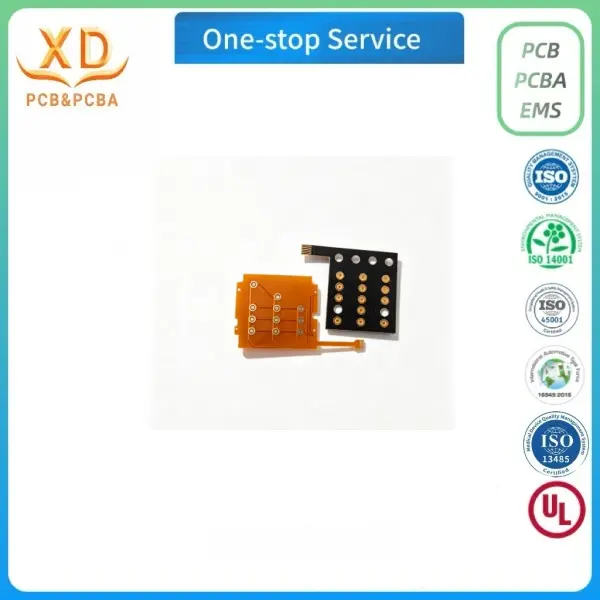

Multilayer pcb flexible printed circuit board Four-layer rigid flex pcb fabrication

Place of origin: China
Material: FR-4,PI
Board thickness: 0.3mm-1.6mm
Offer:
Range of copper thickness: 0.5oz-2.0oz

Quote Now

PCB Process

Layers	FPC:1 to 6 Layers, Rigid Flex: 2 to 10 Layers
Regular Base Materials	Kapton,Polyimide(PI), Polyester(PET)
Base Copper Thickness	1/3 oz to 8oz
Regular Base Material Thickness	12.5um to 50um(FPC)
	0.1mm to 3.2mm(Rigid)
Regular Coverlay Thickness	27um to 50um
Regular Adhesive Thickness	12um to 25um
Blind or Buried Vias	Yes
Impedance Control	Yes
Min.Line Width/Spacing	0.04mm/0.04mm
Surface Finishing	Electroplate Ni/Au(Flash gold/Soft gold/Hard gold), ENIG, HASL, Immersion Tin,OSP
Outline Fabrication	Die cut, laser cut, CNC routing, V-scoring
Hole to edge(Hard tool/Die Cut)	±0.1/±0.2mm
Edge to edge(Hard tool/Die Cut)	±0.05/±0.2mm
Circuit to edge(Hard tool/Die Cut)	±0.07/±0.2mm

PCB Application Scenarios

PCB Production Line

Contact Us

Contact us for any help regarding Multilayer rigid flex pcb：

Website: www.xdpcba.com

Email: sales@xdpcba.com sales4@xdpcba.com

Quote Now

Quote Whether is a product enquiry or technical help, please send messager here, our team will respond within 24-48 hours

First Name
Last Name
Phone Number
E-mail Address *
Image Upload Drag the file into this area, or click Upload. (Supports compressed files, Word, Excel
and other file formats)
You Message Descriptions
By submitting this form, you consent to the storage of your data and your interests in order to answer your enquiry. Further information on data processing, your rights and revocation can be found in our privacy policy.

Related Products

ENIG flexible circuit board Highly flexible pcb board Robot three-layer rigid-flex PCB printed circuit board

As a leading PCB manufacturer of robotic PCB, we specialize in manufacturing highly flexible rigid-flex PCB. This rigid-flex PCB is designed for motion control systems and central control systems in industrial robots, humanoid robots, and medical rehabilitation robots. It utilizes FR4, PI, and NOFLOW PP substrates, with an ENIG surface finish. Our PCB achieves 0.03mm trace width/spacing, enabling highdensity signal transmission and enhanced intelligence for robotic applications.
Quote Now
Flexible printed circuit smart glow stick four-layer rigid flexible pcb flex circuit board

As a leading OEM manufacturer of light stick PCB, we specialize in manufacturing smart glow stick PCB. Our service integrates ultra-thin FPC design, low-power BLE 5.2 modules, and advanced biometric sensor integration (PPG/IMU). Designed for for illumination and atmosphere, Our PCB features wide trace design and high copper foil coverage, which effectively reduce impedance and heat generation, thereby extending the service life of the light stick.
Quote Now
The smart ring rigid flex circuit boards four-layer rigid-flex board printed circuit boards pcb fpcb

As a leading PCB manufacturer of smart ring rigid-flex PCBs, we specialize in manufacturing highly flexible rigid-flex PCBs. This rigid-flex PCB is designed for smart rings used in gesture control, health monitoring, and wireless communication. It utilizes FR4, PI, and NOFLOW PP substrates, with an ENIG surface finish. Our PCB adopts RA copper, which significantly extends the service life and bending performance of the PCB.
Quote Now

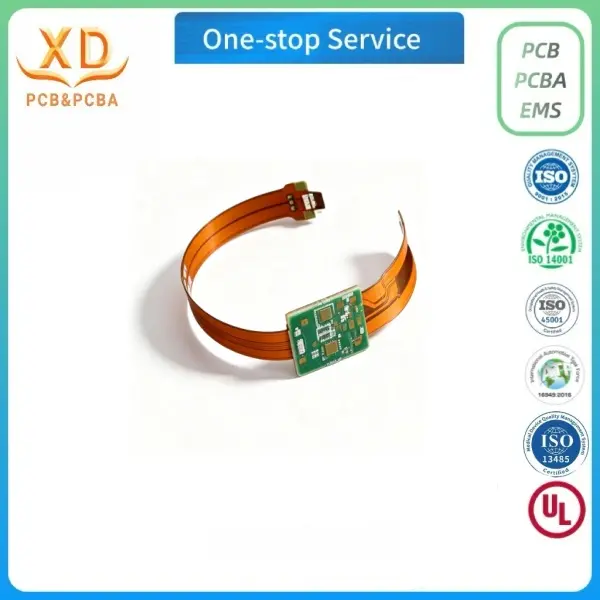

Smart ring with an ultra-thin six-layer rigid flex PCB polyimide pcb without NFC wireless charging flex pcb

As a leading OEM manufacturer of miniature wearable PCB, we specialize in manufacturing smart ring PCB assembly. Our service integrates ultra-thin FPC design, low-power BLE 5.2 modules, and advanced biometric sensor integration (PPG/IMU). Designed for health monitoring and contactless payment applications, our PCB achieves a standby current of <10µA to ensure reliable short-range communication.
Quote Now
